Home /Products/Carbon Steel H Beam/ABS Carbon Steel H Beam Hot Rolled Ss400 S235jr S355jr For Construction

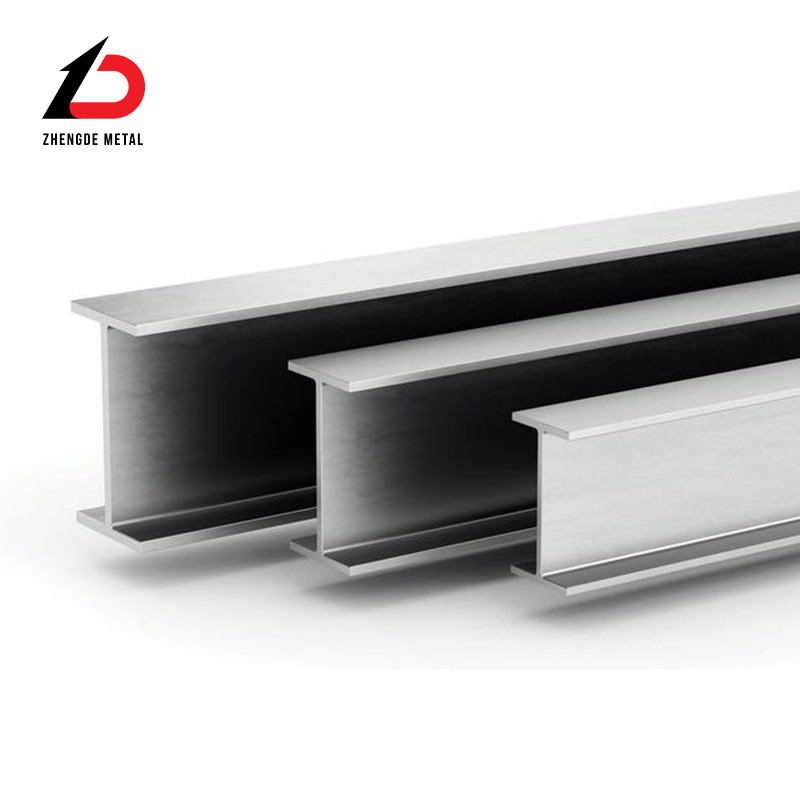

ABS Carbon Steel H Beam Hot Rolled Ss400 S235jr S355jr For Construction

negoiate
Price
ABS Carbon Steel H Beam Hot Rolled Ss400 S235jr S355jr For Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: H Beam
Product Name: H Beam
Payment Term: 30%T/T Advance + 70% Balance
Alloy Or Not: Low Alloy
MOQ: 3tons
Lengh: Customized
Advantage: Wear Resistance, Machinability, Easy Welding
Specification2: W4 W5 W6 W8
Specification3: Ipe AA100 120 140 160 180 200
Standard1: ASTM A 6/a 6m-07 BS 4-1:1993 En 10024 JIS G 3192
Transport Package: Export Standard Package/as Request
Specification: According To Customer Requirements
Trademark: ZHENGDE
Origin: China
HS Code: 7216101000
Supply Ability: 50000 Tons/Month
Grade: SS355JR
Standard: AISI, JIS, ASTM, DIN, BS, GB
Certification: IS0, RoHS, ABS
Material: ASTM A36 A572 A992 S235jr/J0/J2 S355jr/J0/J2
Custom Made: Yes
Custom Cycle: 7-15 Days
Samples: US$ 0/Meter 1 Meter(Min.Order) | Request Sample
Highlight:

ABS Carbon Steel H Beam

,

Carbon Steel H Beam For Construction
Basic Infomation
Place of Origin: CHNIA
Brand Name: Zhengde
Payment & Shipping Terms
Packaging Details: Customer settings
Delivery Time: 10days
Product Description

Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam For Construction

Product Description

Product Description

Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction ProjectsThe steel structure mainly composed of hot-rolled H-beams has a scientific and reasonable structure, good plasticity and flexibility, high structural stability, and is suitable for building structures that withstand large vibration and impact loads. It has strong resistance to natural disasters and is particularly suitable for building structures in earthquake prone zones. According to statistics, among the devastating earthquake disasters with a magnitude of 7 or above in the world, steel structures mainly made of H-beams have the least degree of damage.

Universal Beams
Specification: BS EN 10025-2:2004   Dimension: BS4-1:2005   Tolerance: BS EN 10034:1993
Designation h b s t Area Ix Iy ix iy Zx Zy
mmxmmxkg/m mm mm mm mm cm2 cm4 cm4 cm cm cm3 cm3
127x76x13 127.0 76.0 4.0 7.6 16.5 473 55.7 5.35 1.84 74.6 14.7
152x89x16 152.4 88.7 4.5 7.7 20.3 834 89.8 6.41 2.10 110 20.2
178x102x19 177.8 101.2 4.8 7.9 24.3 1,356 137 7.48 2.37 153 27.0
203x102x23 203.2 101.8 5.4 9.3 29.4 2,105 164 8.46 2.36 207 32.2
203x133x25 203.2 133.2 5.7 7.8 32.0 2,340 308 8.56 3.10 230 46.0
203x133x30 206.8 133.9 6.4 9.6 38.2 2,896 385 8.71 3.17 280 57.5
254x102x22 254.0 101.6 5.7 6.8 28.0 2,841 119 10.10 2.06 224 23.5
254x102x25 257.2 101.9 6.0 8.4 32.0 3,415 149 10.30 2.15 266 29.0
254x102x28 260.4 102.2 6.3 10.0 36.1 4,005 179 10.50 2.22 308 35.0
254x146x31 251.4 146.1 6.0 8.6 39.7 4,413 448 10.55 3.36 351 61.0
254x146x37 256.0 146.4 6.3 10.9 47.2 5,537 571 10.80 3.48 433 78.0
254x146x43 259.6 147.3 7.2 12.7 54.8 6,544 677 10.90 3.52 504 92.0
305x102x25 305.1 101.6 5.8 7.0 31.6 4,455 123 11.87 1.97 292 24.2
305x102x28 308.7 101.8 6.0 8.8 35.9 5,366 155 12.23 2.08 348 30.5
305x102x33 312.7 102.4 6.6 10.8 41.8 6,501 194 12.47 2.15 416 37.9
305x127x37 304.4 123.4 7.1 10.7 47.2 7,171 336 12.30 2.67 471 54.5
305x127x42 307.2 124.3 8.0 12.1 53.4 8,196 389 12.40 2.70 534 62.6
305x127x48 311.0 125.3 9.0 14.0 61.2 9,575 461 12.50 2.74 616 73.6
305x165x40 303.4 165.0 6.0 10.2 51.3 8,503 764 12.90 3.86 560 93.0
305x165x46 306.6 165.7 6.7 11.8 58.7 9,899 896 13.00 3.90 646 108
305x165x54 310.4 166.9 7.9 13.7 68.8 11,700 1063 13.00 3.93 754 127
356x127x33 349.0 125.4 6.0 8.5 42.1 8,249 280 14.00 2.58 473 45.0
356x127x39 353.4 126.0 6.6 10.7 49.8 10,172 358 14.30 2.68 576 57.0
356x171x45 351.4 171.1 7.0 9.7 57.3 12,070 811 14.50 3.76 687 95.0
356x171x51 355.0 171.5 7.4 11.5 64.9 14,140 968 14.80 3.86 796 113
356x171x57 358.0 172.2 8.1 13.0 72.6 16,040 1108 14.90 3.91 896 129
356x171x67 363.4 173.2 9.1 15.7 85.5 19,460 1362 15.10 3.99 1,071 157
406x140x39 398.0 141.8 6.4 8.6 49.7 12,508 410 15.90 2.87 629 58.0
406x140x46 403.2 142.2 6.8 11.2 58.6 15,685 538 16.40 3.03 778 76.0
406x178x54 402.6 177.7 7.7 10.9 69.0 18,720 1021 16.50 3.85 930 115
406x178x60 406.4 177.9 7.9 12.8 76.5 21,600 1203 16.80 3.97 1,063 135
406x178x67 409.4 178.8 8.8 14.3 85.5 24,330 1365 16.90 3.99 1,189 153
406x178x74 412.8 179.5 9.5 16.0 94.5 27,310 1545 17.00 4.04 1,323 172
457x152x52 449.8 152.4 7.6 10.9 66.6 21,370 645 17.90 3.11 950 85.0
457x152x60 454.6 152.9 8.1 13.3 76.2 25,500 795 18.30 3.23 1,122 104
457x152x67 458.0 153.8 9.0 15.0 85.6 28,930 913 18.40 3.27 1,263 119
457x152x74 462.0 154.4 9.6 17.0 94.5 32,670 1047 18.60 3.33 1,414 136
457x152x82 465.8 155.3 10.5 18.9 104.5 36,590 1185 18.70 3.37 1,571 152.5


Jumbo Beams
Specification: BS EN 10025-2:2004   Dimension: ASTM A6-11   Tolerance: BS EN 10034:1993
Designation h b s t Area Ix Iy ix iy Zx Zy
mmxmmxkg/m mm mm mm mm cm2 cm4 cm4 cm cm cm3 cm3
1016x305x222 970.3 300.0 16.0 21.1 282 406,500 9,501 37.95 5.80 8,380 633
1016x305x249 980.0 300.0 16.5 26.0 317 481,100 11,750 38.97 6.09 9,818 784
1016x305x272 990.1 300.0 16.5 31.0 347 553,800 14,000 39.96 6.35 11,190 934
1016x305x314 1000.0 300.0 19.1 35.9 400 644,700 16,280 40.15 6.38 12,890 1085
1016x305x349 1008.1 302.0 21.1 40.0 444 722,300 18,460 40.32 6.45 14,330 1222
1016x305x393 1016.0 303.0 24.4 43.9 500 807,700 20,500 40.18 6.40 15,900 1353
1016x305x415 1020.0 304.0 26.0 46.0 529 853,100 21,710 40.17 6.41 16,728 1428
1016x305x438 1026.0 305.0 27.0 49.0 557 909,800 23,360 40.41 6.47 17,740 1532
1016x305x494 1036.0 309.0 31.0 54.0 629 1,028,000 26,820 40.42 6.53 19,845 1736
1016x305x584 1056.0 314.0 36.0 64.0 744 1,246,100 33,430 40.93 6.70 23,600 2130

Japanese I-sections (Tapered Flange)
Specification: BS EN 10025-2:2004   Dimension: JIS G3192:2008   Tolerance: JIS G3912:2008
Designation h b s t Area Ix Iy ix iy Zx Zy
mmxmmxkg/m mm mm mm mm cm2 cm4 cm4 cm cm cm3 cm3
150x75x17.1 150 75 5.5 9.5 21.83 819 57.5 6.12 1.62 109 15.3
200x100x26.0 200 100 7 10 33.06 2,170 138 8.11 2.05 217 27.7

Japanese H-sections
Specification: BS EN 10025-2:2004   Dimension: JIS G3192:2008   Tolerance: JIS G3912:2008
Designation h b s t Area Ix Iy ix iy Zx Zy
mmxmmxkg/m mm mm mm mm cm2 cm4 cm4 cm cm cm3 cm3
100x100x16.9 100 100 6 8 21.59 378 134 4.18 2.49 75.6 26.7
125x125x23.6 125 125 6.5 9 30.00 839 293 5.29 3.13 134 46.9
150x75x14.0 150 75 5 7 17.85 666 49.5 6.11 1.66 88.8 13.2
175x90x18.0 175 90 5 8 22.90 1,210 97.5 7.26 2.06 138 21.7
200x100x17.8 198 99 4.5 7 22.69 1,540 113 8.25 2.24 156 22.9
200x100x20.9 200 100 5.5 8 26.67 1,810 134 8.23 2.24 181 26.7
250x125x25.1 248 124 5 8 31.99 3,450 255 10.4 2.82 278 41.1
250x125x29.0 250 125 6 9 36.97 3,960 294 10.4 2.82 317 47.0
Our Advantages
Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction Projects
Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction Projects
High Strength
The H-beam produced by Zhengde Metal has high structural strength and light weight; the design style is flexible and rich;
The project construction is fast, the floor area is small, and it is suitable for all-weather construction. It is convenient for machining, structural connection and installation, and easy to dismantle and reuse.
Adequate inventory
The steel structure mainly consists of hot-rolled H-shaped steel, with good plasticity and toughness, and high structural stability
Strong ability to resist natural disasters, especially suitable for building structures in earthquake-prone areas;
Compared with the concrete structure, it can increase the use area of the structure; compared with the welded H-shaped steel, it can obviously save labor and materials, low residual stress, and good appearance and surface quality.
Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction Projects
Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction Projects
Attention to detail
The advantages of H-beam produced by Zhengde Metal:
Full range of steel types: carbon structural steel, low-alloy structural steel, structural steel for hull, weather-resistant structural steel

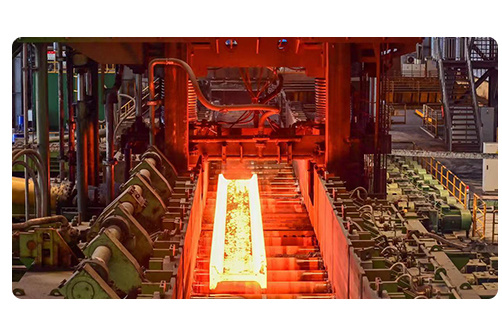

Good technology: automatic continuous rolling, laser cutting, precise straightening
Large output: 8 production lines with a daily output of 1600 tons

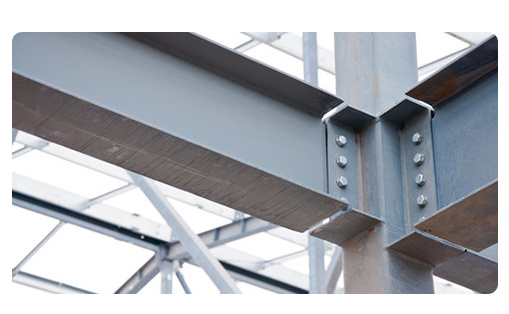

Applicable scene
H-shaped steel is mainly used for beam and column members in industrial and civil structures. for example
1. Steel structure load-bearing brackets of industrial structures
2. Steel piles and supporting structures for underground engineering
3. Industrial equipment structure such as petrochemical industry and electric power
4. Long-span steel bridge components
5. Ship and machinery manufacturing frame structure
6. Girder brackets for trains, automobiles, and tractors
7. Port conveyor belt, high-speed baffle support
Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction Projects
Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction Projects
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.

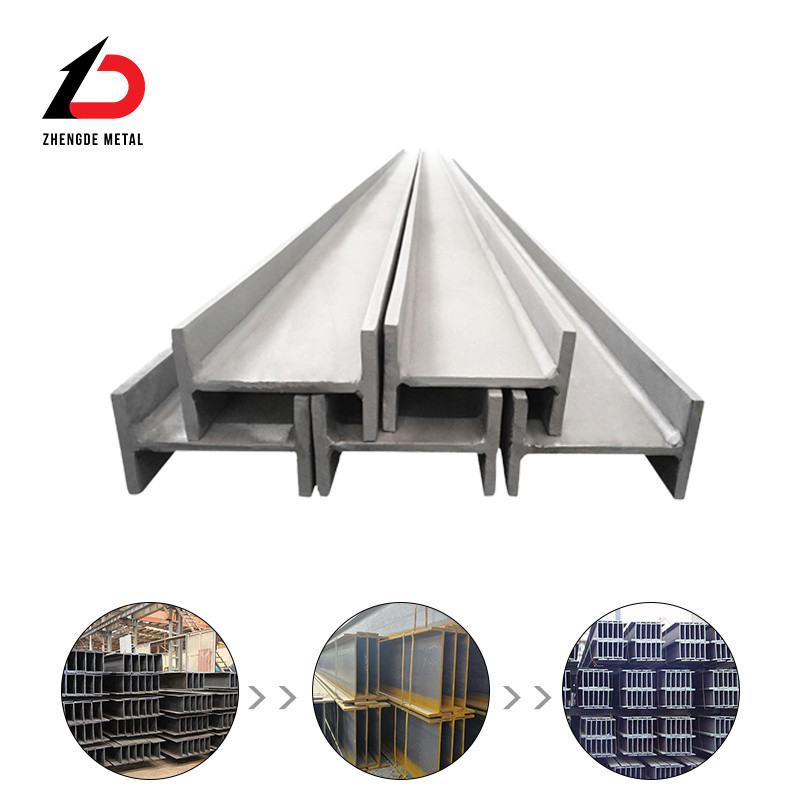

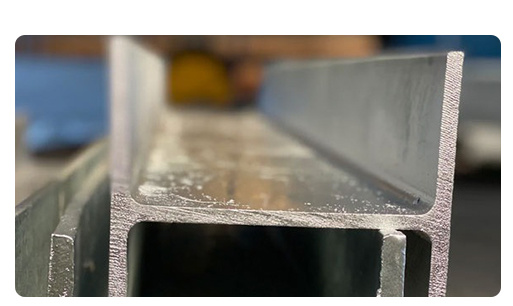

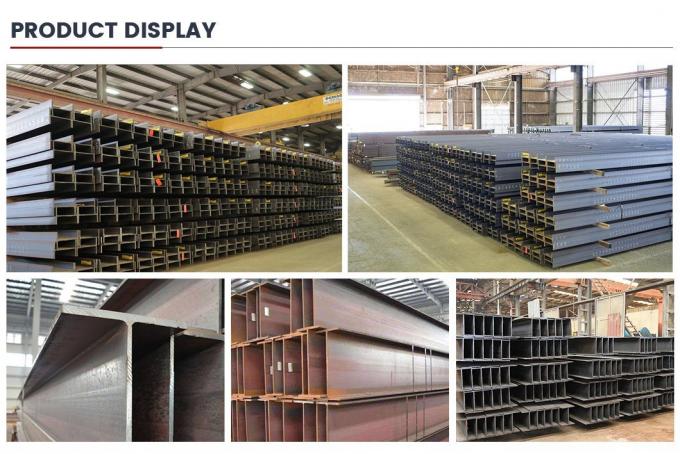

Detailed Photos

Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction ProjectsSs400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction Projects

Packaging & Shipping

Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction Projects

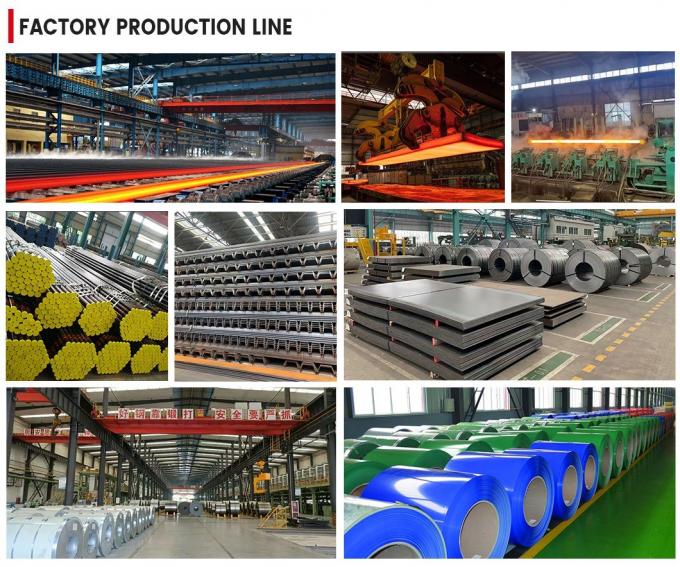

Company Profile

Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction ProjectsShandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction Projects

Certifications

Ss400 S235jr S355jr S355j2 A36 Galvanized Carbon Hot/Cold Rolled Mild Carbon Steel H Beam for Construction Projects
