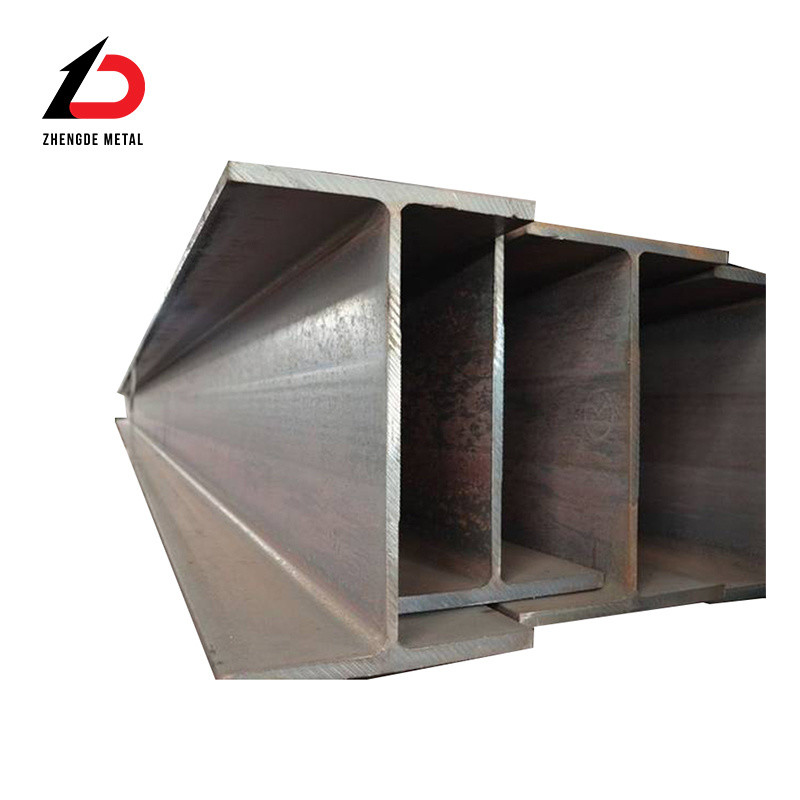

20mm Carbon Steel H Beam S235jr A36 S275jr Ss400 Mild Steel H Beam

negoiate
Price
20mm Carbon Steel H Beam S235jr A36 S275jr Ss400 Mild Steel H Beam
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO.: H Beam
Product Name: H Beam
Payment Term: 30%T/T Advance + 70% Balance
Alloy Or Not: Low Alloy
MOQ: 3tons
Lengh: Customized
Advantage: Wear Resistance, Machinability, Easy Welding
Specification2: W4 W5 W6 W8
Specification3: Ipe AA100 120 140 160 180 200
Standard1: ASTM A 6/a 6m-07 BS 4-1:1993 En 10024 JIS G 3192
Transport Package: Export Standard Package/as Request
Specification: According To Customer Requirements
Trademark: ZHENGDE
Origin: China
HS Code: 7216101000
Supply Ability: 50000 Tons/Month
Grade: SS355JR
Standard: AISI, JIS, ASTM, DIN, BS, GB
Certification: IS0, RoHS, ABS
Material: ASTM A36 A572 A992 S235jr/J0/J2 S355jr/J0/J2
Custom Made: Yes
Custom Cycle: 7-15 Days
Samples: US$ 0/Meter 1 Meter(Min.Order) | Request Sample
Highlight:

20mm Carbon Steel H Beam

,

20mm Mild Steel H Beam

,

Ss400 Mild Steel H Beam
Basic Infomation
Place of Origin: CHNIA
Brand Name: Zhengde
Payment & Shipping Terms
Packaging Details: Customer settings
Delivery Time: 10days
Product Description

Factory Price Direct Sale Hot Rolled H Beams 100 Mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X

Product Description

Product Description

Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H BeamThe steel structure mainly made of hot-rolled H-beams has a high degree of industrial production, which is convenient for mechanical manufacturing, intensive production, high accuracy, convenient installation, and easy to ensure quality. It can be built into a real house manufacturing factory, bridge manufacturing factory, industrial factory building manufacturing factory, etc. The development of steel structures has created and driven the development of hundreds of emerging industries.



IPE
Specification: BS EN 10025-2:2004   Dimension: Euronorm 19-57   Tolerance: BS EN 10034:1993
Designation h b s t Area Ix Iy ix iy Zx Zy
Ttype mmxmmxkg/m mm mm mm mm cm2 cm4 cm4 cm cm cm3 cm3
AA100 100x55x6.7 97.6 55.0 3.6 4.5 8.56 136 12.6 3.98 1.21 27.9 4.57
AA120 120x64x8.4 117.0 64.0 3.8 4.8 10.7 244 21.1 4.79 1.41 41.7 6.59
AA140 140x73x10.1 136.6 73.0 3.8 5.2 12.8 407 33.8 5.64 1.63 59.7 9.27
AA160 160x82x12.1 156.4 82.0 4.0 5.6 15.4 646 51.6 6.47 1.83 82.6 12.6
AA180 180x91x14.9 176.4 91.0 4.3 6.2 19.0 1,020 78.1 7.32 2.03 116 17.2
AA200 200x100x18.0 196.4 100.0 4.5 6.7 22.9 1,533 112 8.19 2.21 156 22.4

Japanese I-sections (Tapered Flange)
Specification: BS EN 10025-2:2004   Dimension: JIS G3192:2008   Tolerance: JIS G3912:2008
Designation h b s t Area Ix Iy ix iy Zx Zy
mmxmmxkg/m mm mm mm mm cm2 cm4 cm4 cm cm cm3 cm3
150x75x17.1 150 75 5.5 9.5 21.83 819 57.5 6.12 1.62 109 15.3
200x100x26.0 200 100 7 10 33.06 2,170 138 8.11 2.05 217 27.7

Japanese H-sections
Specification: BS EN 10025-2:2004   Dimension: JIS G3192:2008   Tolerance: JIS G3912:2008
Designation h b s t Area Ix Iy ix iy Zx Zy
mmxmmxkg/m mm mm mm mm cm2 cm4 cm4 cm cm cm3 cm3
100x100x16.9 100 100 6 8 21.59 378 134 4.18 2.49 75.6 26.7
125x125x23.6 125 125 6.5 9 30.00 839 293 5.29 3.13 134 46.9
150x75x14.0 150 75 5 7 17.85 666 49.5 6.11 1.66 88.8 13.2
175x90x18.0 175 90 5 8 22.90 1,210 97.5 7.26 2.06 138 21.7
200x100x17.8 198 99 4.5 7 22.69 1,540 113 8.25 2.24 156 22.9
200x100x20.9 200 100 5.5 8 26.67 1,810 134 8.23 2.24 181 26.7
250x125x25.1 248 124 5 8 31.99 3,450 255 10.4 2.82 278 41.1
250x125x29.0 250 125 6 9 36.97 3,960 294 10.4 2.82 317 47.0
Our Advantages
Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H Beam
Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H Beam
High Strength
The H-beam produced by Zhengde Metal has high structural strength and light weight; the design style is flexible and rich;
The project construction is fast, the floor area is small, and it is suitable for all-weather construction. It is convenient for machining, structural connection and installation, and easy to dismantle and reuse.
Adequate inventory
The steel structure mainly consists of hot-rolled H-shaped steel, with good plasticity and toughness, and high structural stability
Strong ability to resist natural disasters, especially suitable for building structures in earthquake-prone areas;
Compared with the concrete structure, it can increase the use area of the structure; compared with the welded H-shaped steel, it can obviously save labor and materials, low residual stress, and good appearance and surface quality.
Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H Beam
Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H Beam

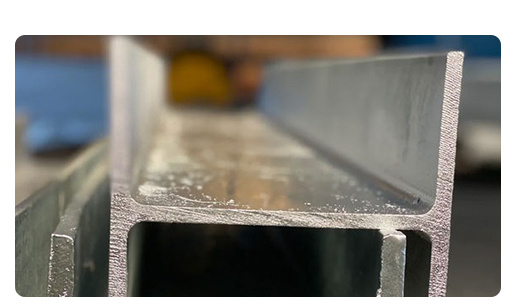

Attention to detail
The advantages of H-beam produced by Zhengde Metal:
Full range of steel types: carbon structural steel, low-alloy structural steel, structural steel for hull, weather-resistant structural steel

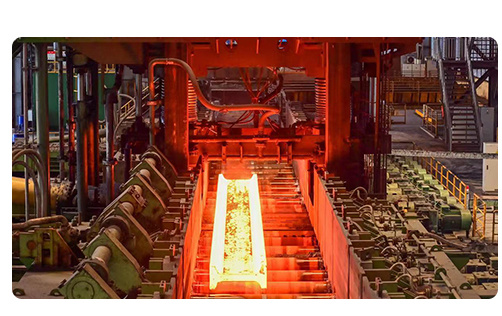

Good technology: automatic continuous rolling, laser cutting, precise straightening
Large output: 8 production lines with a daily output of 1600 tons

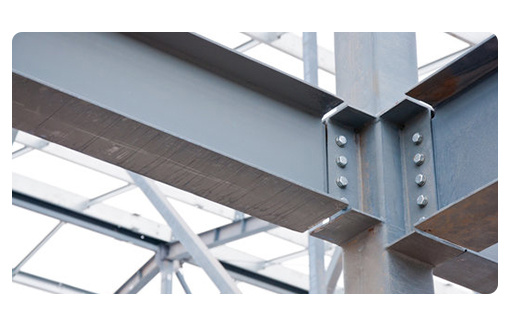

Applicable scene
H-shaped steel is mainly used for beam and column members in industrial and civil structures. for example
1. Steel structure load-bearing brackets of industrial structures
2. Steel piles and supporting structures for underground engineering
3. Industrial equipment structure such as petrochemical industry and electric power
4. Long-span steel bridge components
5. Ship and machinery manufacturing frame structure
6. Girder brackets for trains, automobiles, and tractors
7. Port conveyor belt, high-speed baffle support
Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H Beam
Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H Beam
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.

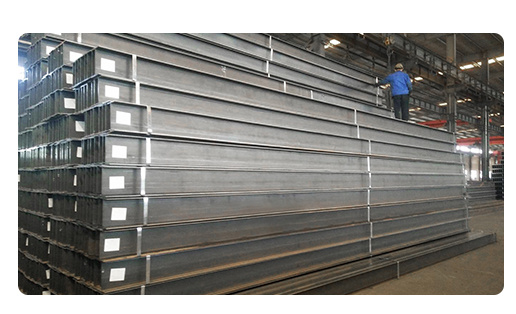

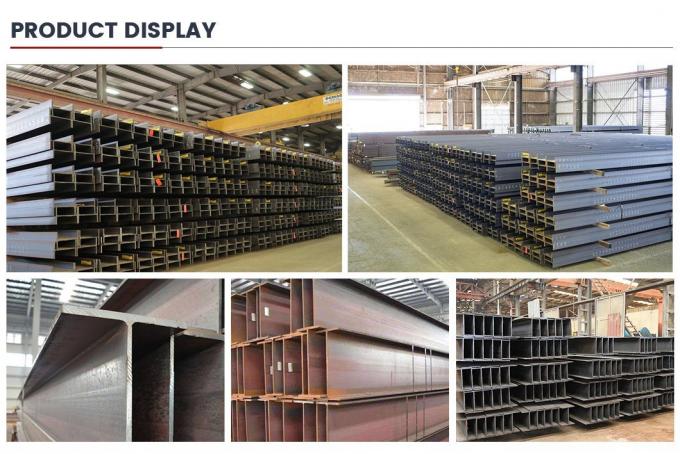

Detailed Photos

Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H BeamFactory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H Beam

Packaging & Shipping

Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H Beam

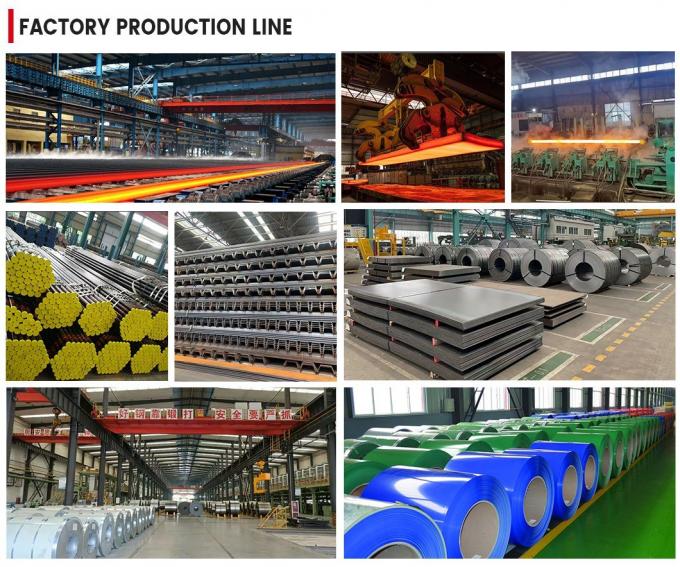

Company Profile

Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H BeamShandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H Beam

Certifications

Factory Price Direct Sale Hot Rolled H Beams 100 mm 20mm S235jr A36 S275jr Ss400 Mild Steel H Beam 150X150 H Beam
