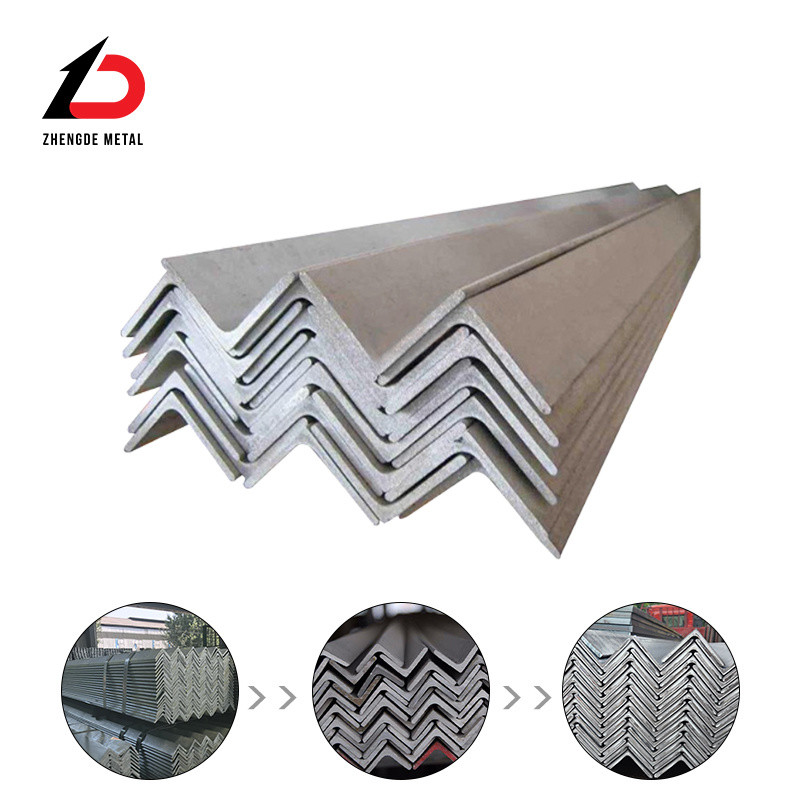

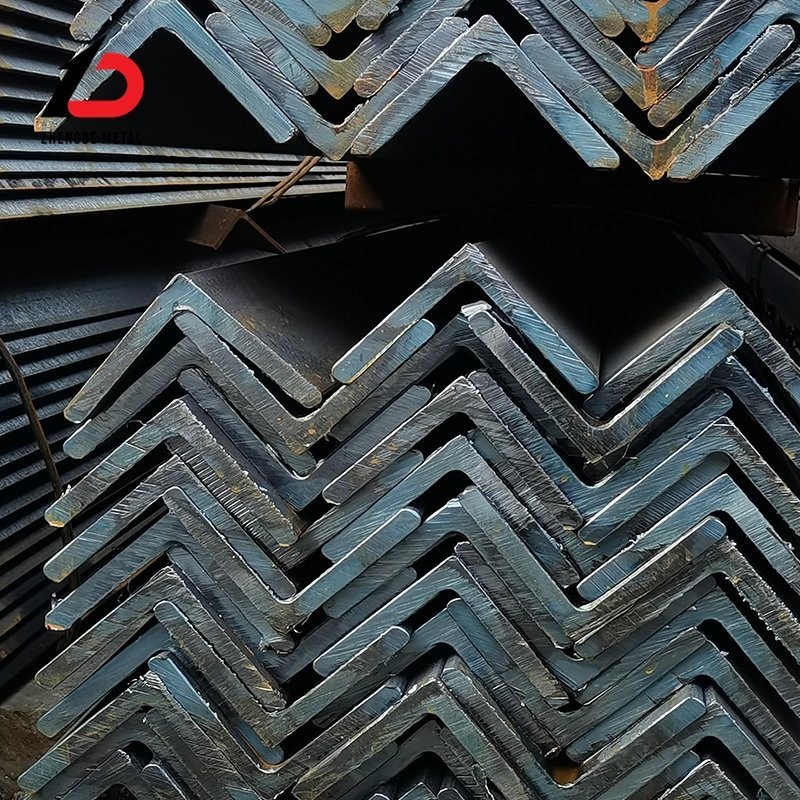

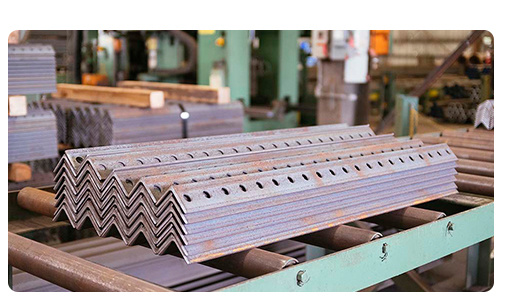

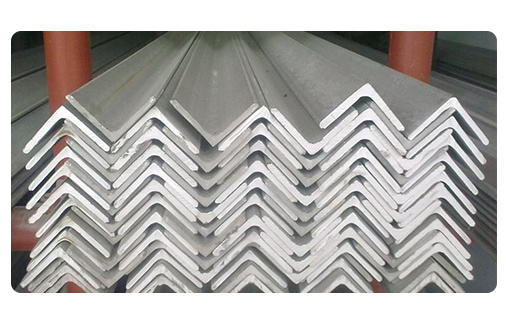

Zhengde Brief introduction of angle steel: Angle steel can be composed of various stress components according to different needs of the structure, and can also be used as a connector between components. Widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, busbar support installation, and warehouses shelves etc.

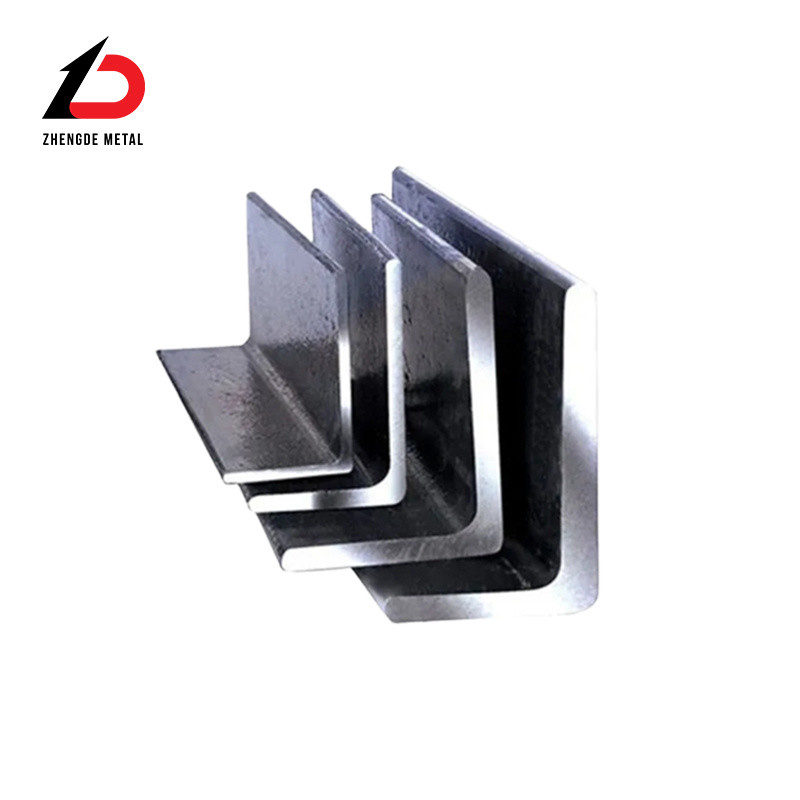

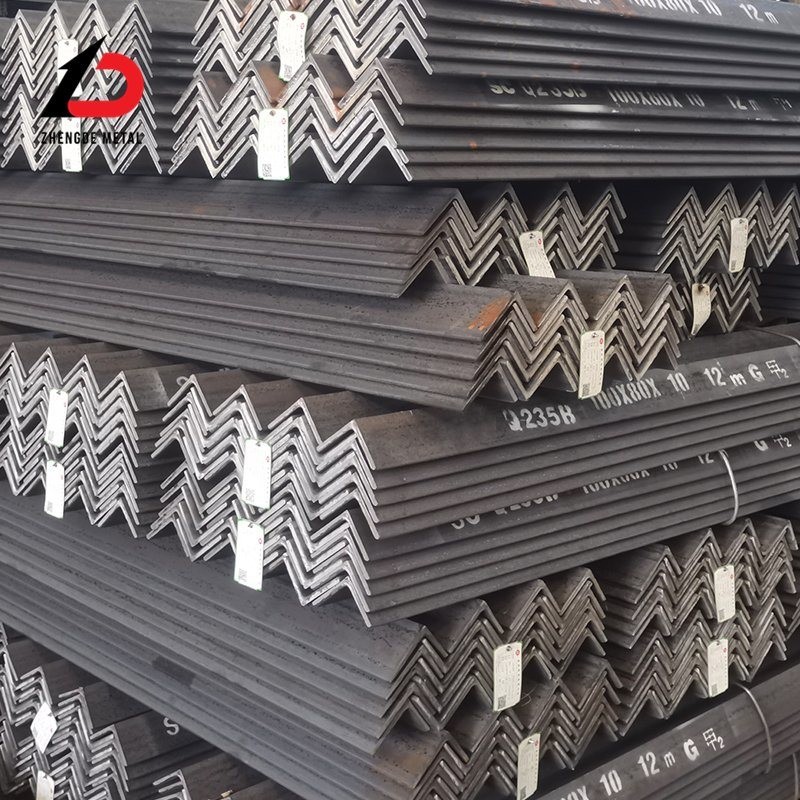

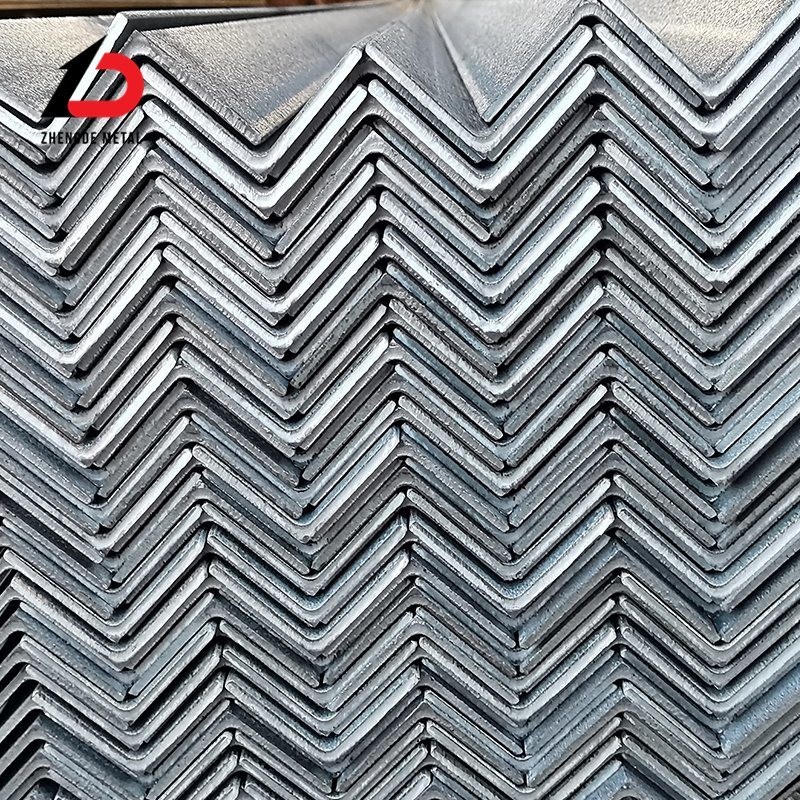

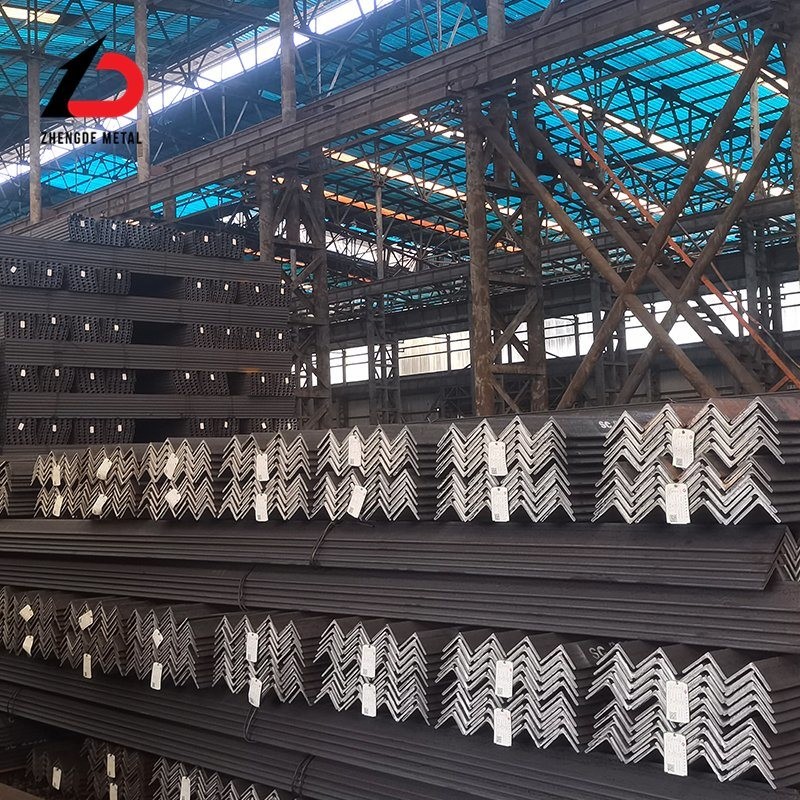

Types of angle steel: mainly divided into two types: equilateral angle steel and unequal side angle steel, among which unequal side angle steel can be divided into two types: unequal sides and equal thickness and unequal sides and unequal thickness.
| Sectional properties and theoretical weight of hot-rolled equilateral angle steel | ||||||||||||||||
| Size(mm) | CSA | Theoretical Weight | center | consistency | resistance…Wx | Radius of gyration | Double angle steel turning radius…iy…(cm) | |||||||||
| Wing width | wing | radius | A | y0 | Ix | MAX | MIN | ix | iu | iv | a(mm): | |||||
| b | t | R | (cm2) | kg/m | (cm) | cm4 | cm3 | cm | cm | cm | 0 | 6 | 8 | 10 | 12 | |
| 20 | 3 | 3.5 | 1.13 | 0.89 | 0.60 | 0.40 | 0.66 | 0.29 | 0.59 | 0.75 | 0.39 | 0.85 | 1.08 | 1.17 | 1.25 | 1.34 |
| 4 | 1.46 | 1.15 | 0.64 | 0.50 | 0.78 | 0.36 | 0.58 | 0.73 | 0.38 | 0.87 | 1.11 | 1.19 | 1.28 | 1.37 | ||
| 25 | 3 | 3.5 | 1.43 | 1.12 | 0.73 | 0.82 | 1.12 | 0.46 | 0.76 | 0.95 | 0.49 | 1.05 | 1.27 | 1.36 | 1.44 | 1.53 |
| 4 | 1.86 | 1.46 | 0.76 | 1.03 | 1.34 | 0.59 | 0.74 | 0.93 | 0.48 | 1.07 | 1.30 | 1.38 | 1.43 | 1.55 | ||
| 30 | 3 | 4.5 | 1.75 | 1.37 | 2.85 | 1.46 | 1.72 | 0.68 | 0.91 | 1.15 | 0.59 | 1.27 | 1.47 | 1.55 | 1.63 | 1.71 |
| 4 | 2.28 | 1.79 | 0.89 | 1.84 | 2.08 | 0.87 | 0.90 | 1.13 | 0.58 | 1.26 | 1.49 | 1.57 | 1.65 | 1.74 | ||
| 36 | 3 | 4.5 | 2.11 | 1.66 | 1.00 | 2.58 | 2.59 | 0.99 | 1.11 | 1.39 | 0.71 | 1.49 | 1.70 | 1.78 | 1.86 | 1.94 |
| 4 | 2.76 | 2.16 | 1.04 | 3.29 | 3.18 | 1.28 | 1.09 | 1.38 | 0.70 | 1.51 | 1.73 | 1.80 | 1.89 | 1.97 | ||
| 5 | 3.38 | 2.65 | 1.07 | 3.95 | 3.68 | 1.56 | 1.08 | 1.36 | 0.70 | 1.52 | 1.75 | 1.83 | 1.91 | 1.99 | ||
| 40 | 3 | 5 | 2.36 | 1.85 | 1.09 | 3.59 | 3.28 | 1.23 | 1.23 | 1.55 | 0.79 | 1.65 | 1.86 | 1.94 | 2.01 | 2.09 |
| 4 | 3.09 | 2.42 | 1.13 | 4.60 | 4.05 | 1.60 | 1.22 | 1.54 | 0.79 | 1.66 | 1.88 | 1.96 | 2.04 | 2.12 | ||
| 5 | 3.79 | 2.98 | 1.17 | 5.53 | 4.72 | 1.96 | 1.21 | 1.52 | 0.78 | 1.68 | 1.90 | 1.98 | 2.06 | 2.14 | ||
| 45 | 3 | 5 | 2.66 | 2.09 | 1.22 | 5.17 | 4.25 | 1.58 | 1.39 | 1.76 | 0.90 | 1.85 | 2.06 | 2.14 | 2.21 | 2.29 |
| 4 | 3.49 | 2.74 | 1.26 | 6.65 | 5.29 | 2.05 | 1.38 | 1.74 | 0.89 | 1.87 | 2.08 | 2.16 | 2.24 | 2.32 | ||
| 5 | 4.29 | 3.37 | 1.30 | 8.04 | 6.20 | 2.51 | 1.37 | 1.72 | 0.88 | 1.89 | 2.10 | 2.18 | 2.26 | 2.34 | ||
| 6 | 5.08 | 3.99 | 1.33 | 9.33 | 6.99 | 2.95 | 1.36 | 1.71 | 0.88 | 1.90 | 2.12 | 2.20 | 2.28 | 2.36 | ||
| Contact Zhengde Metal for more detailed angle steel parameter information | ||||||||||||||||
