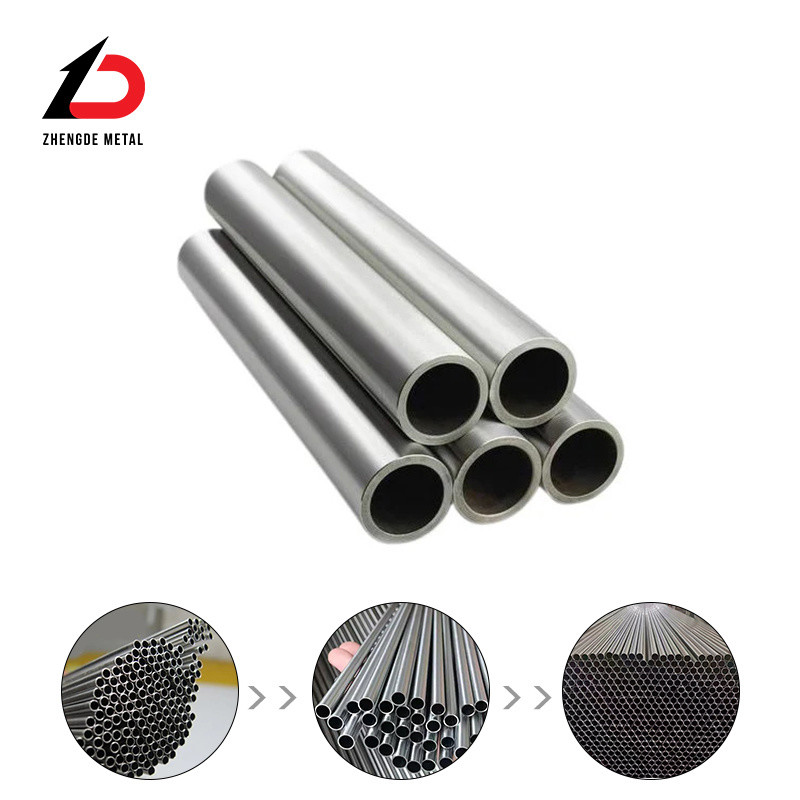

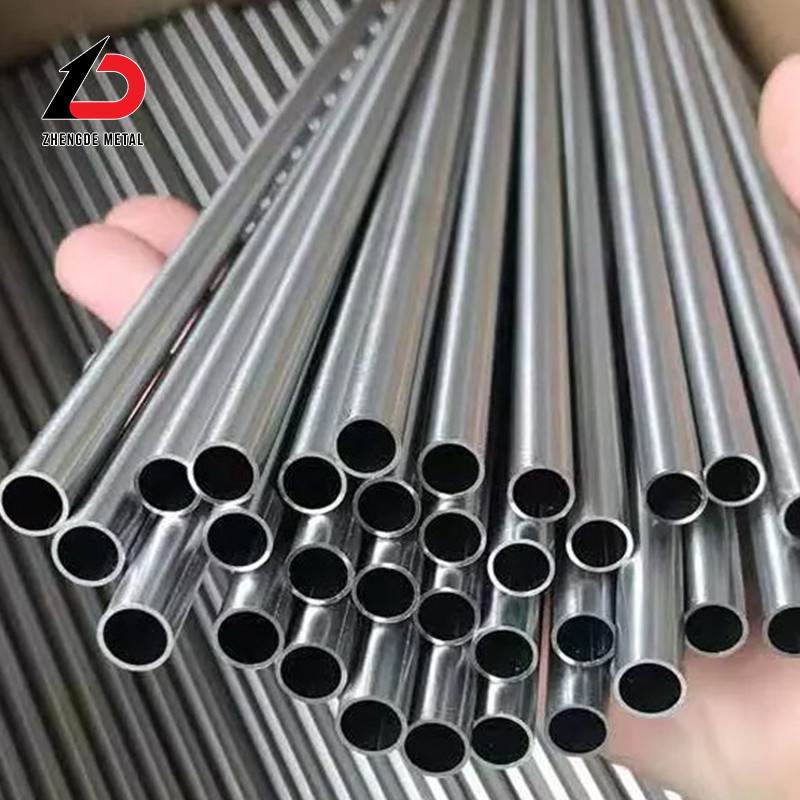

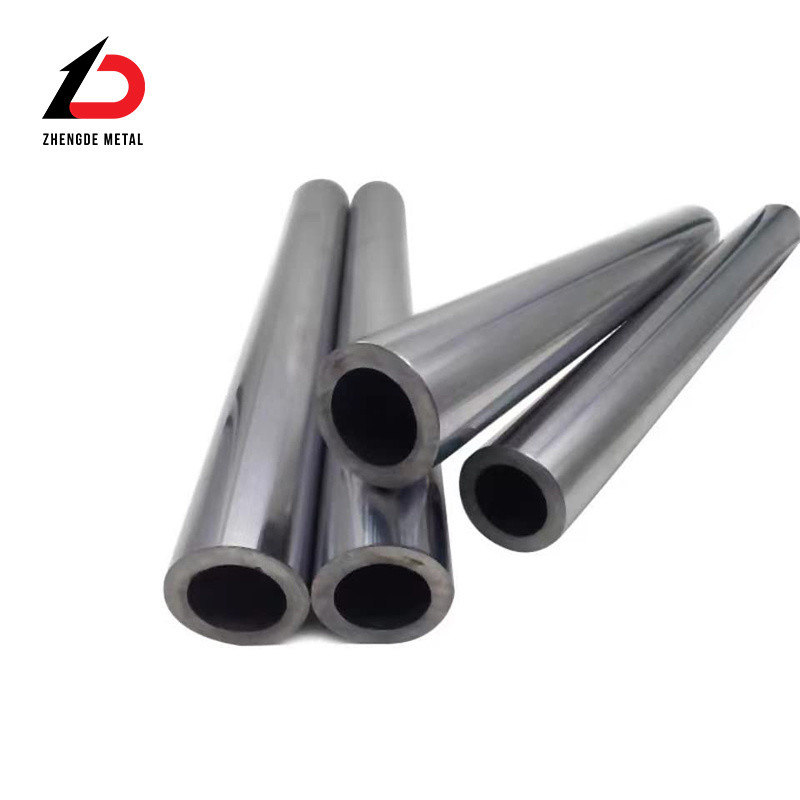

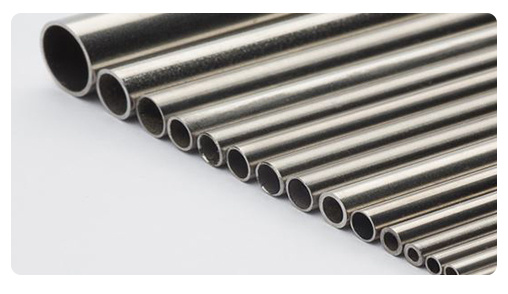

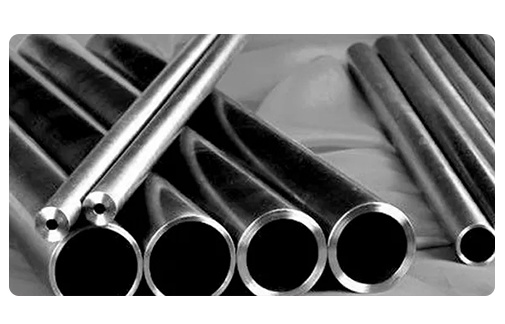

Zhengde Precision steel pipe is a key material used in manufacturing high-precision and high-performance mechanical equipment. It has excellent physical and mechanical properties and is widely used in aerospace, automobile manufacturing, petrochemical and other fields.
Material characteristics: 1. High precision: Precision steel pipes have high diameter accuracy and wall thickness accuracy, and can meet the accuracy requirements of various mechanical equipment. 2. Excellent mechanical properties 3. Good corrosion resistance 4. Excellent processing performance
Production process: The production process of precision steel pipes mainly includes steps such as cold drawing, cold rolling and cold extrusion.
1. Cold drawing: The most common production process of precision steel pipes is cold drawing, which means cold processing of hot-rolled steel pipes, and drawing them to make the diameter and wall thickness meet the requirements.
2. Cold rolling: The cold rolling process is to cold process the hot-rolled steel billet. Through multiple passes of rolling and drawing, the size of the steel pipe is gradu.
Application fields
Precision steel pipes are widely used in aerospace, automobile manufacturing, petrochemical and other fields, with the following typical applications:
1. Aerospace field: Precision steel pipes are used to manufacture high-pressure, high-temperature hydraulic systems and gas systems such as aircraft engines, missiles and rockets.
2. Automobile manufacturing field: Precision steel pipes are used to manufacture key components such as automobile chassis, engines and transmissions to improve the safety and reliability of automobiles.
3. Petrochemical industry: Precision steel pipes are used in oil and natural gas extraction and transportation pipelines. They have the characteristics of high pressure resistance and corrosion resistance to ensure the safe operation of petrochemical equipment.
4. Machinery manufacturing field: Precision steel pipes are used to manufacture various precision instruments, meters and mechanical parts, such as high-precision bearings, instrument cases, etc.ally adjusted and controlled.
3. Cold extrusion: The cold extrusion process is to heat the steel billet to an appropriate temperature and then extrude it through a special die to form a hollow pipe. The cold extrusion process can produce precision steel pipes with uniform wall thickness and high internal and external surface finish.
| Thickness±10% (smallest±0.12mm) | ||||||||
| 0.5 | -0.8 | 1 | -1.2 | 1.5 | -1.8 | 2 | ||
| outer diameter | Inner diameter (nominal value and allowable deviation) | |||||||
| Size | Allowable deviation | |||||||
| 4 | ±0.10 | 3±0.30 | 2.4±0.30 | 2±0.30 | ||||
| 6 | 5±0.25 | 4.4±0.25 | 4±0.25 | 3.6±0.30 | ||||
| 8 | 7±0.20 | 6.4±0.20 | 6±0.20 | 5.6±0.30 | 5±0.30 | 4.4±0.35 | 4±0.35 | |
| 10 | 9±0.15 | 8.4±0.15 | 8±0.20 | 7.6±0.25 | 7±0.25 | 6.4±0.30 | 6±0.30 | |
| 12 | 11±0.15 | l0.4±0.15 | 10±0.15 | 9.6±0,20 | 9±0.20 | 8.4±0.25 | 8±0.25 | |
| 14 | 13±0.10 | 12.4±0.10 | 12±0.10 | 11.6±0.15 | 11±0.15 | 10.4±0.20 | 10±0.20 | |
| 16 | 15±0.10 | 14.4±0.10 | 14±0.10 | 13.6±0.10 | 13±0.10 | 12.4±0.15 | 12±0.15 | |
| 25 | 24±0.10 | 23.4±0.10 | 23±0.10 | 22.6±0.10 | 22±0.10 | 21.4±0.10 | 21±0.10 | |
| 26 | 25±0.10 | 24.4±0.10 | 24±0.10 | 23.6±0.10 | 23±0.10 | 22.4±0.10 | 22±0.10 | |
| 28 | 27±0.10 | 26.4±0.10 | 26±0.10 | 25.6±0.10 | 25±0.10 | 24.4±0.10 | 24±0.10 | |
| 30 | 29±0.10 | 28.4±0.10 | 28±0.10 | 27.6±0.10 | 27±0.10 | 26.4±0.10 | 26±0.10 | |
| 35 | 34±0.15 | 33.4±0.15 | 33±0.15 | 32.6±0.15 | 32±0.15 | 31.4±0.15 | 3l±0.15 | |
| 38 | 37±0.15 | 36.4±0.15 | 36±0.15 | 35.6±0.15 | 35±0.15 | 34.4±0.15 | 34±0.15 | |
| 40 | 39±0.15 | 38.4±0.15 | 38±0.15 | 37.6±0.15 | 37±0.15 | 36.4±0.15 | 36±0.15 | |
| 45 | 43±0.20 | 42.6±0.20 | 42±0.20 | 41.4±0.20 | 41±0.20 | |||
| 50 | 48±0.20 | 47.6±0.20 | 47±0.20 | 46.4±0.20 | 46±0.20 | |||
| 55 | ±0.25 | 53±0.25 | 52.6±0.25 | 52±0.25 | 51.4±0.25 | 5l±0.25 | ||
| 60 | 58±0.25 | 57.6±0.25 | 57±0.25 | 56.4±0.25 | 56±0.25 | |||
| 70 | 68±0.30 | 67.6±0.30 | 67±0.30 | 66.4±0.30 | 66±0.30 | |||
| 76 | ±0.35 | 74±0.35 | 73.6±0.35 | 73±0.35 | 72.4±0.35 | 72±0.35 | ||
| 80 | 78±0.35 | 77.6±0.35 | 77±0.35 | 76.4±0.35 | 76±0.35 | |||
| 90 | ±0.40 | 87±0.40 | 86.4±0.40 | 86±0.40 | ||||
| 100 | ±0.45 | 96.4±0.45 | 96±0.45 | |||||
| 110 | ±0.50 | 106±0.50 | ||||||
| 120 | 116±0.50 | |||||||
| 150 | ±0.75 | |||||||
| 180 | ±0.90 | |||||||
| 200 | ±1.0 | |||||||
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.

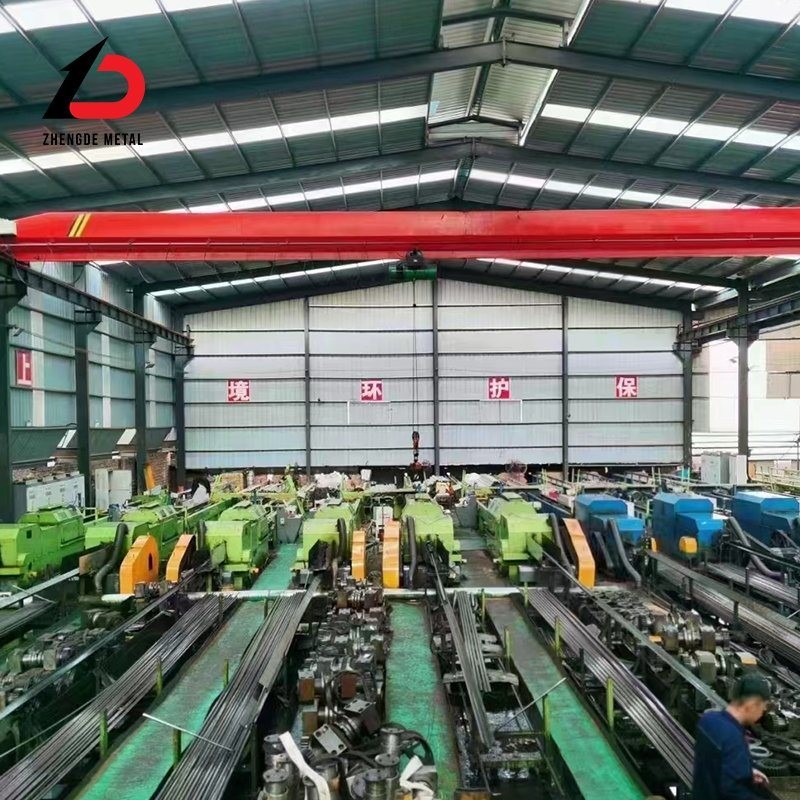

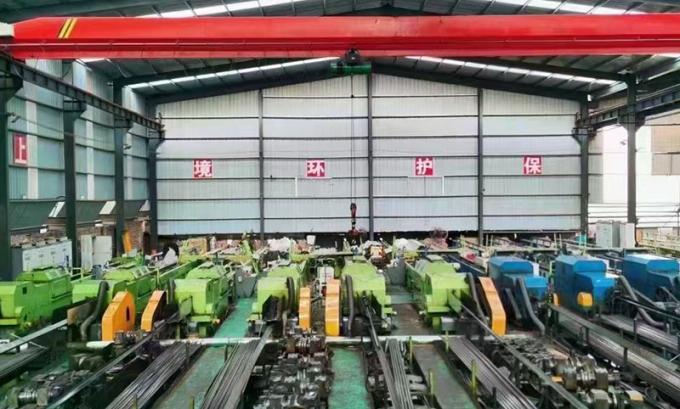

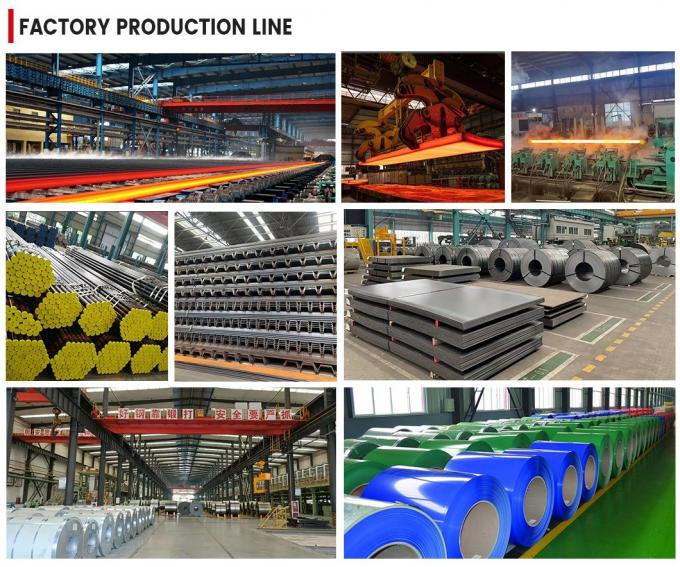

Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
FAQ
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade,length, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q5:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
Q7:Do you provide custom made Products service?

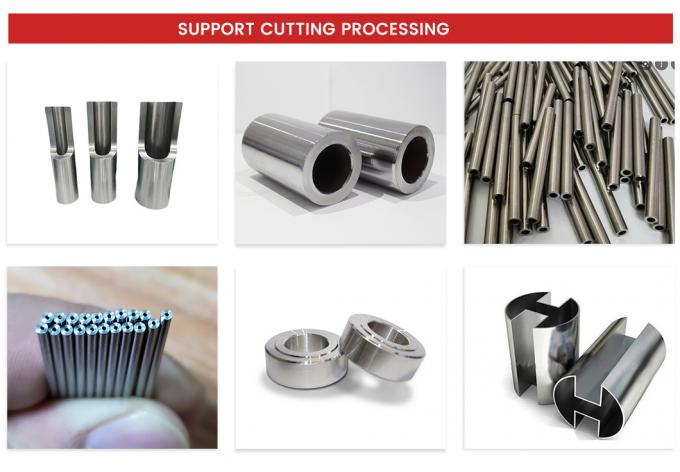

A: Yes,if you have your own design , we can produce according to your specification and drawing.
Q8:What are the certifications for your products?
A:We have ISO 9001, MTC, third parties' inspections are all available such SGS, BV ect.
Q9:How long does your delivery time take?
A:In general, our delivery time is within 7-15 days, and may be longer if the quantity is extremely large or special circumstances occur.
Q10: How many countries you already exported to?
A:We have exported to America, Canada, Brazil, Chile, Colombia, Russia, Ukraine, Thailand, Myanmar, Vietnam, India, Kenya, Ghana,somalia and other African countries.Our export experience is rich, we familiar with different market demands, can help customers avoid a lot of trouble.
Q11:Can I go to your factory to visit?
A:Of course, we welcome customers from all over the world to visit our factory.
Q12:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed and customers will be well evaluated.
