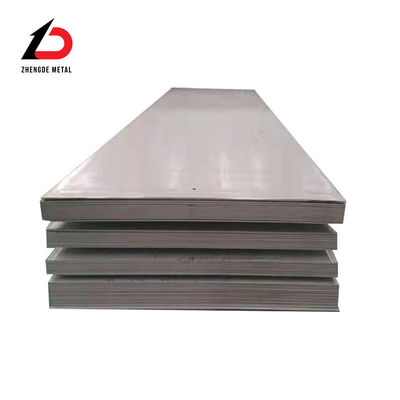

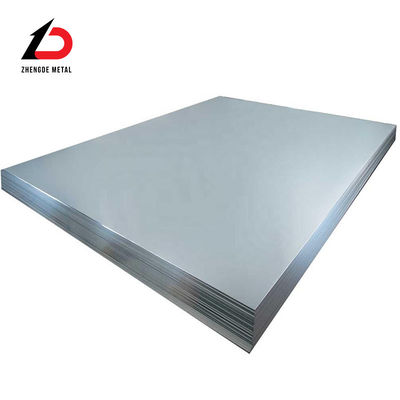

Product Description
Zhengde Metal- Cold rolled steel plate is the abbreviation for ordinary carbon structural steel cold rolled plate, also known as cold rolled plate. Cold rolled steel plates are hot-rolled steel strips of ordinary carbon structural steel, which are further cold rolled to produce steel plates with a thickness of less than 4mm. Due to the fact that rolling at room temperature does not produce oxide scale, the cold plate has good surface quality and high dimensional accuracy. In addition, annealing treatment results in better mechanical and technological properties than hot-rolled thin steel plates. In many fields, especially in the field of home appliance manufacturing, it has gradually been used to replace hot-rolled thin steel plates.
| Usually available specification range |
| Variety |
thickness |
width |
length(or coil inner diameter) |
| steel plate |
trimming |
0.30~3.5 |
900~1830 |
1000~6000 |
| No trimming |
900~1850 |
| steel belt |
trimming |
0.30~3.5 |
900~1830 |
610(the inside diameter of) |
| No trimming |
900~1850 |
| Slitting steel strip |
0.30~3.5 |
120~<900 |
| Technical Standards for cold rolled steel coil |
| grade |
Zhengde enterprise standard |
Comparable to foreign standards |
illustrate |
| Standard |
Grade |
Standard |
Grade |
| general use |
Q/BQB403 Q/BQB402 |
St12 SPCC |
DIN1623JISG3141 |
St12 SPCC |
For general forming processing such as refrigerators and other home appliance shells, oil barrels, and steel furniture. |
| stamping grade |
Q/BQB403 Q/BQB402 |
St13 SPCD |
DIN1623JISG3141 |
St13 SPCD |
Steel for stamping and forming processes such as automobiles, home appliances, and construction. |
| Deep drawing |
Q/BQB403 Q/BQB402 |
St14, (F, HF, ZF)SPCE (F, HF, ZF) |
DIN1623JISG3141 |
St13 SPCE |
Automobile headlights, fuel tanks, car doors, windows and other steels for deep drawing and forming. |
| Steel for extra deep drawing |
Q/BQB403 |
St15 St14T |
|
|
Car headlights, complex underbody panels, oil pans. |
| hard steel |
Q/BQB402 |
SPCC4D SPCC8D SPCC1D |
JISG3141 |
1/4 hard1/8hard |
Steel for bicycle rims and steel for stationery. |
| structural steel |
Q/BQB410 BZJ410 |
St37-2G St44-3G St52-3G |
DIN1623 |
St37-2G St44-3G St52-3G |
Buildings, car bodies, brackets. |
| Atmospheric resistant steel |
BZJ441 |
B440NQ B450NQ B460NQ B500NQ |
|
|
Automobile, train car outer panels, container panels, doors and windows, cold-formed steel and other components. |
| steel for car wheels |
BZJ412 |
B320LW B360LW |
|
|
Steel for automotive wheel rims. |
Our Advantages
High precision
Cold-rolled high-quality thin steel plate: mainly includes various high-quality steel cold-rolled thin plates, the most commonly used is carbon structural steel plate, especially cold-rolled thin steel plate for deep drawing, which is cold-rolled thin plate made of low-carbon high-quality steel 08Al. The quality is divided into three groups;1 ,2 and 3, which represent particularly high-grade, high-grade, and higher-finish surfaces, respectively.
Extensive use
Cold-rolled steel plate with smooth surface and excellent processing, used for home appliances such as automobiles, refrigerators, washing machines, industrial equipment, and various building materials. With the development of the economy, cold-rolled steel sheets have been called necessary materials in modern society. Classification of cold-rolled products: hot-rolled pickling, hard-rolled coil, ordinary cold-rolled, galvanized (electro-galvanized, anti-fingerprint, hot-dip galvanized), galvanized, electro-tinned, color-coated, electrical steel (silicon steel sheet) wait.
Strict craftsmanship
Cold rolled steel coils generally use hot-rolled strip steel with a thickness of 1.5-6 mm as the cold rolled billet. The main processes include pickling, cold rolling, degreasing, annealing, leveling, and shearing (cross cutting, longitudinal cutting). If producing coated plates, there are also plating or coating processes such as electroplating tin, hot tin coating, and hot zinc coating. The production process of cold rolled billets is as follows: hot rolled sheet coils (raw materials) - acid washing - cold rolling - degreasing - annealing - leveling - shearing - finished product delivery.
Provide deep processing
The company's slitting machine, slitting line, cuts cold rolled steel coils into strips of various widths as needed, and then folds the strips into small coils for use in the next process. It is a necessary equipment for precision cutting of transformers, motor industries, and other metal strips. It is mainly used for strip cutting of materials such as tinplate, galvanized iron, silicon steel sheet, cold rolled strip, stainless steel strip, aluminum strip, steel strip, and other coils.
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.

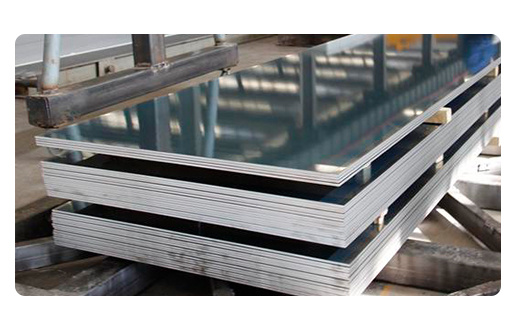

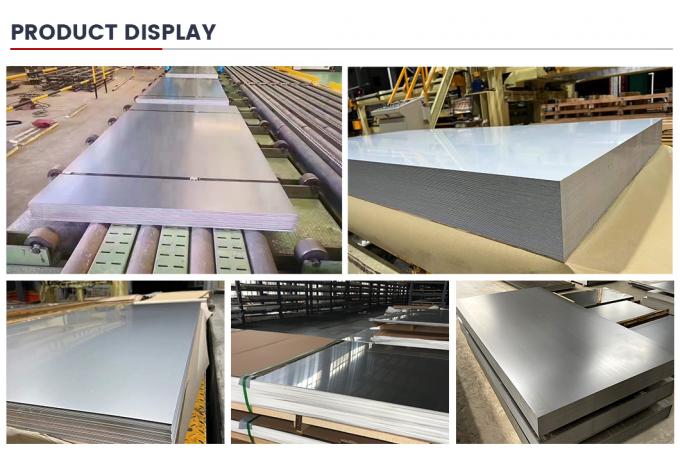

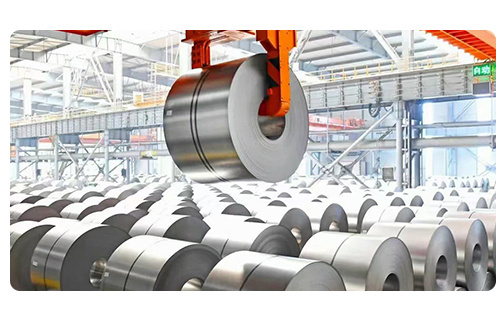

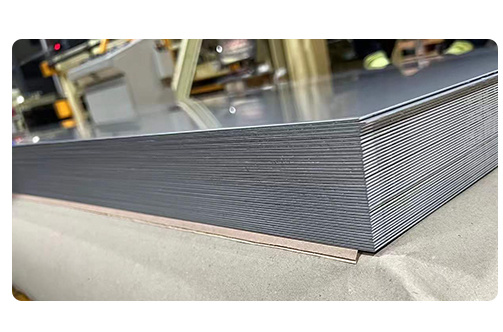

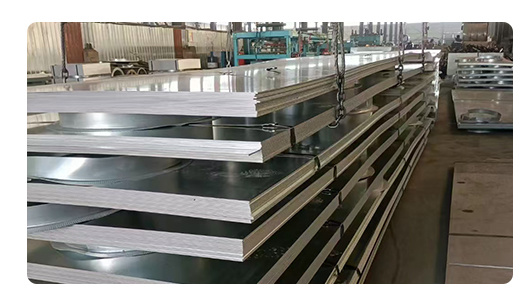

Detailed Photos
Packaging & Shipping

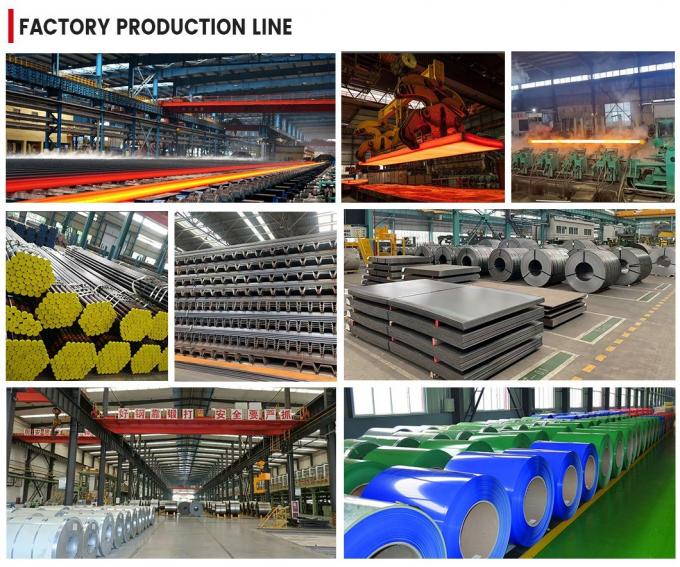

Company Profile
Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
Certifications
FAQ
1.You are a manufacturing or trading company?
---We are manufacturer. And we have years of export experience. We can ofer competitive price.
2.What quote do you offer?
---FOB&CFR&CIF and others ways according the your needs.
3. Can I have a trial order only several tons?
---Of course, We can ship the cargo for you with LCL (Less container load).
4.Can we print our own logo ?
---Yes, we can print logo for you.
5.How pay?
---T/T L/C or as you requested.
6. What is your MOQ?
---It is 3 ton each size for PPGI.
7. Do you provide samples?
---Yes. We could offer the sample by free but you should pay the freight cost
8.What is the quality of your products guarantee?
---We can offer the material testing report before the shipment.
9.Do you have after-sales service?
---Certainly. you can contact us at any time.
