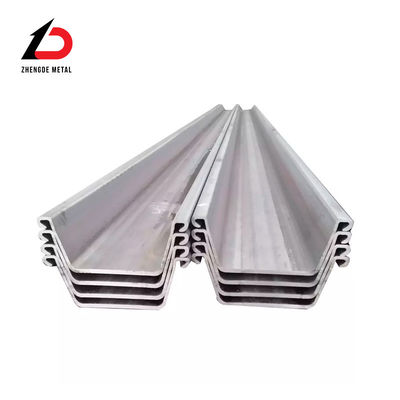

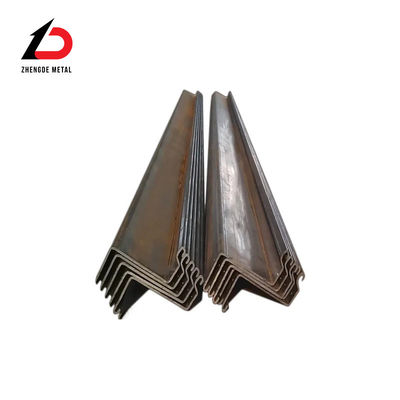

Supplier Grade Sy390 Steel Sheet Pile Interlocking Sheets Z Type U Type 8m 10m 12m Steel Sheet Pile
Product Description
Product Description
There are many types of sheet piles, such as U-type, Z-type, Omega-type, flat-type, disc-type, hat-type, and straight-belly metal sheet piles. In Asia, especially Japan and Korea, U-profiles have been used for nearly 100 years. Z-beams are more popular in Europe and the United States because of their good section modulus to weight ratio. There are different types of interlocks or connectors: Larssen and Hoesch Frodingham types, socket and ball profiles, hook and grip profiles, etc. Cold-rolled or cold-formed sheet piles are rolled from steel sheets at room temperature and have properties and strengths similar to those of hot-rolled sheet piles. Rolled sheet piles.

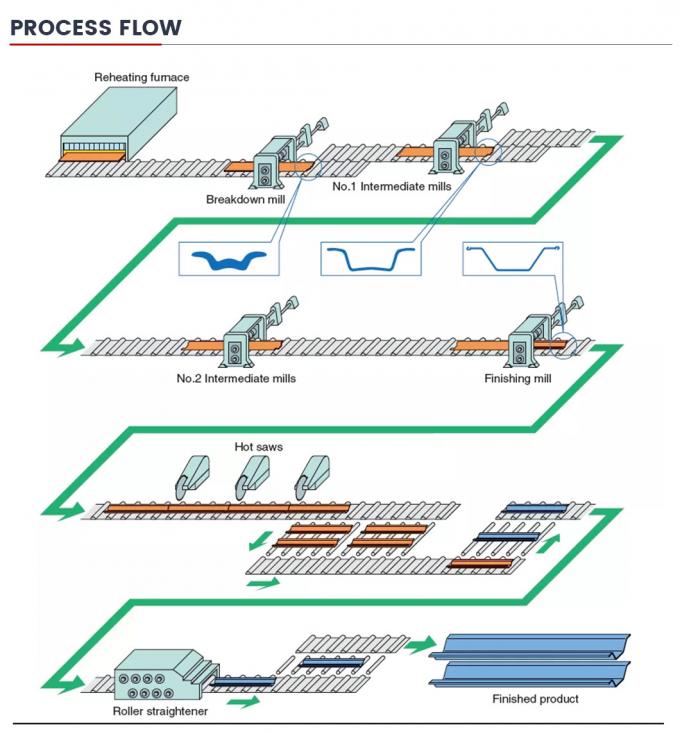

Hot-rolled steel sheet piles The hot-rolled steel sheet piles in the world mainly include U-type, Z-type, AS-type, H-type and dozens of specifications. The production, processing and installation process of Z-type and AS-type steel sheet piles are relatively complicated, and they are mainly used in Europe and the United States; domestically, U-type steel sheet piles are mainly used. Production process: It is formed by high-temperature rolling in a section steel rolling mill. Advantages: standard size, superior performance, reasonable cross-section, high quality, and tight water-repel lent lock joint. Disadvantages: high technical difficulty, high production cost, inflexible specification series.
| Type |
Width |
Height |
Thickness |
Sectional area |
Weight per pile |
Weight per wall |
Moment of Inertia |
Modulus of section |
| mm |
mm |
mm |
Cm2/m |
Kg/m |
Kg/ m2 |
Cm4/m |
Cm3/m |
| ZDU7 |
750 |
320 |
5 |
71.3 |
42 |
56 |
10725 |
670 |
| ZDU8 |
750 |
320 |
6 |
86.7 |
51 |
68.1 |
13169 |
823 |
| ZDU9 |
750 |
320 |
7 |
101.4 |
59.7 |
79.6 |
15251 |
953 |
| ZDU10-450 |
450 |
360 |
8 |
148.6 |
52.5 |
116.7 |
18268 |
1015 |
| ZDU11-450 |
450 |
360 |
9 |
165.9 |
58.6 |
130.2 |
20375 |
1132 |
| ZDU12-450 |
450 |
360 |
10 |
182.9 |
64.7 |
143.8 |
22444 |
1247 |
| ZDU11-575 |
575 |
360 |
8 |
133.8 |
60.4 |
105.1 |
19685 |
1094 |
| ZDU12-575 |
575 |
360 |
9 |
149.5 |
67.5 |
117.4 |
21973 |
1221 |
| ZDU13-575 |
575 |
360 |
10 |
165 |
74.5 |
129.5 |
24224 |
1346 |
| ZDU11-600 |
600 |
360 |
8 |
131.4 |
61.9 |
103.2 |
19897 |
1105 |
| ZDU12-600 |
600 |
360 |
9 |
147.3 |
69.5 |
115.8 |
22213 |
1234 |
| ZDU13-600 |
600 |
360 |
10 |
162.4 |
76.5 |
127.5 |
24491 |
1361 |
| ZDU18- 600 |
600 |
350 |
12 |
220.3 |
103.8 |
172.9 |
32797 |
1874 |
| ZDU20- 600 |
600 |
350 |
13 |
238.5 |
112.3 |
187.2 |
35224 |
2013 |
| ZDU16 |
650 |
480 |
8 |
138.5 |
71.3 |
109.6 |
39864 |
1661 |
| ZDU 18 |
650 |
480 |
9 |
156.1 |
79.5 |
122.3 |
44521 |
1855 |
| ZDU20 |
650 |
540 |
8 |
153.7 |
78.1 |
120.2 |
56002 |
2074 |
| ZDU23 |
650 |
540 |
9 |
169.4 |
87.3 |
133 |
61084 |
2318 |
| ZDU26 |
650 |
540 |
10 |
187.4 |
96.2 |
146.9 |
69093 |
2559 |
| ZDU30-700 |
700 |
558 |
11 |
217.1 |
119.3 |
170.5 |
83139 |
2980 |
| For more technical parameters of steel sheet piles, please contact us for details |
Our Advantages
Excellent characteristics
As a reusable green and environment-friendly foundation structure material, hot-rolled U-shaped steel sheet piles are highly efficient, durable, simple, lightweight, and have an excellent cross-sectional shape that is sealed and anti-seepage. And unique advantages such as safety and environmental protection.Compared with other structures, it has a light structure, strong bearing capacity, and good earthquake resistance; strong water insulation, which can make the structure quickly stop water or plug leaks, impervious to penetration and easy to construct.
Major application
The first phase project of Shanghai Changxing Island Shipbuilding Base, Tangshan Caofeidian Coal Wharf and other major projects, the amount of one-time steel sheet piles for these projects has reached 10,000 tons. In addition, in the application of foundation pit enclosure, water retaining cofferdam, wharf construction, etc., such as the second phase project of Pudong International Airport, Shanghai World Expo Project, and the temporary enclosure of steel sheet piles for Hangzhou Bay Bridge are also relatively large.
Attention to detail Steel sheet piles are inspected for appearance surface defects, length, width, thickness, height, end square ratio, straightness and lock shape, and channel steel piles are inspected for appearance surface defects, length, width, thickness, height, end angle , straightness and other inspections, cut off the welded parts on the pile that affect the pile driving (there are cut holes and section defects should be reinforced).
Full range
Cold-formed steel sheet piles and hot-rolled steel sheet piles can be produced in U-shape, Z-shape, and W-shape. The manufacturing process is different. The wall thickness of cold-formed steel sheet piles is the same, and the thickness of hot-rolled steel sheet piles is different in different parts. do thick.
The length of hot-rolled steel sheet piles is generally limited, mainly 9 meters, 12 meters, 15 meters, 18 meters, 400 wide, and 600 wide. The water stop effect is generally better than that of cold bending, and the market stock is large.
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.

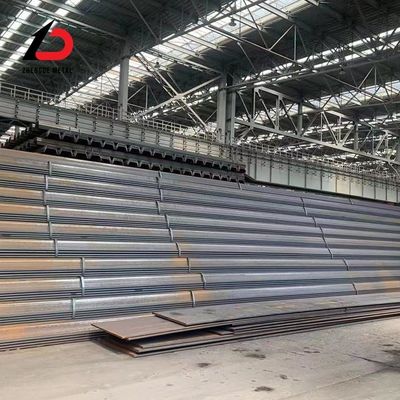

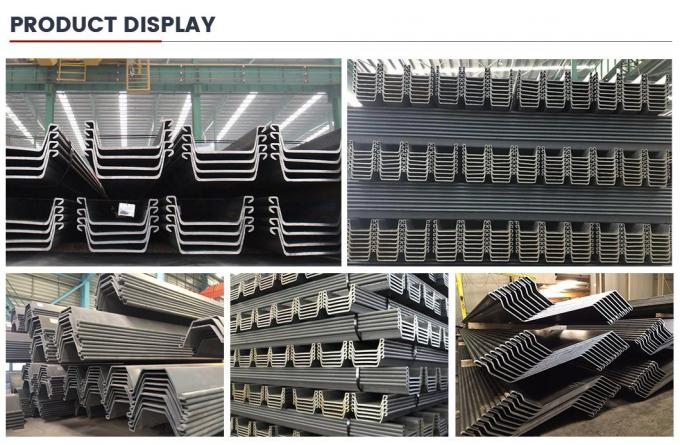

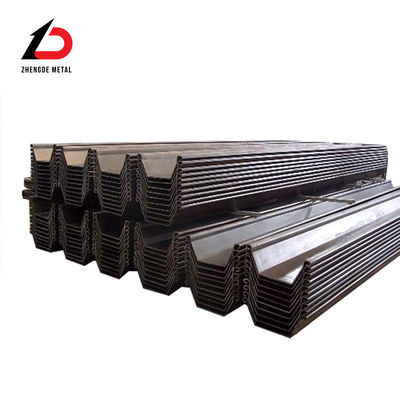

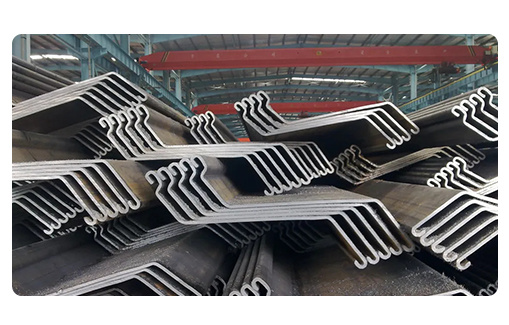

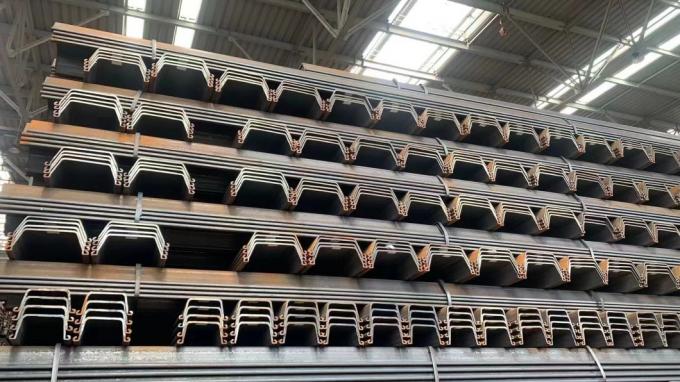

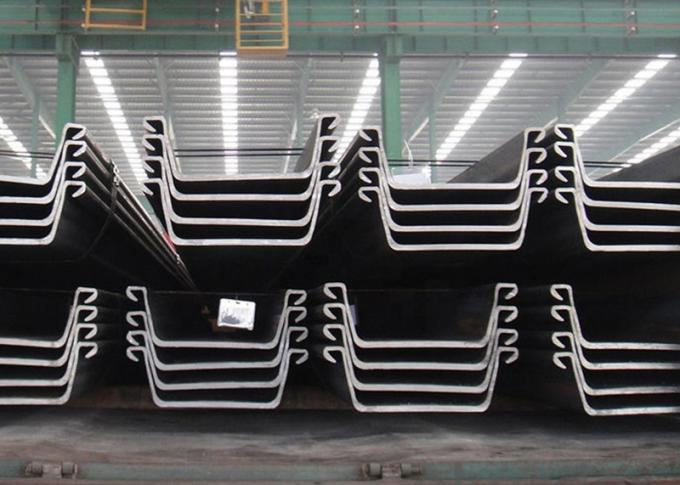

Detailed Photos

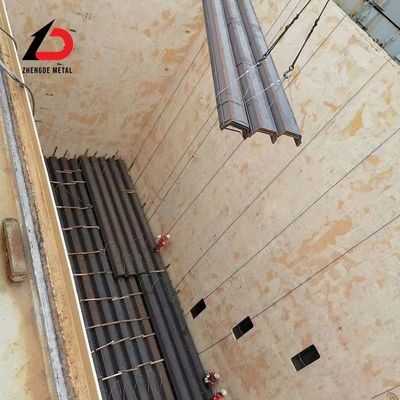

Packaging & Shipping
Company Profile

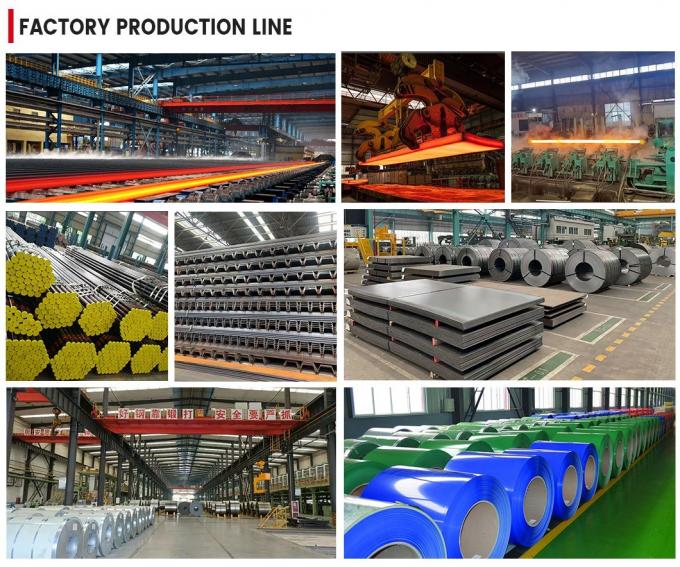

Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
