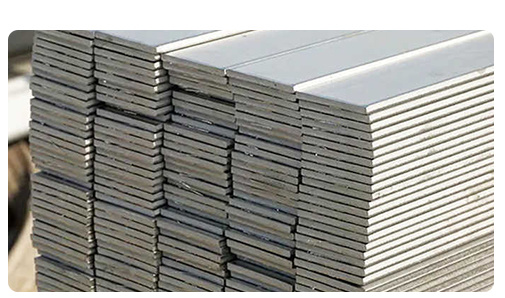

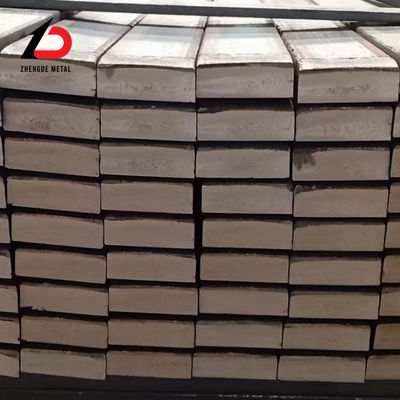

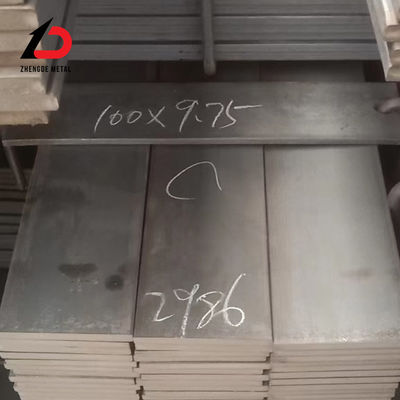

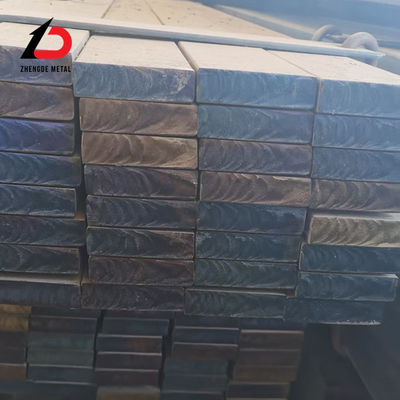

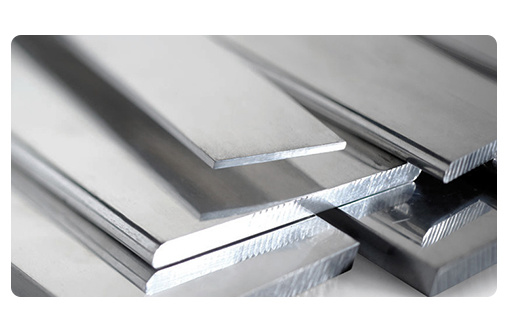

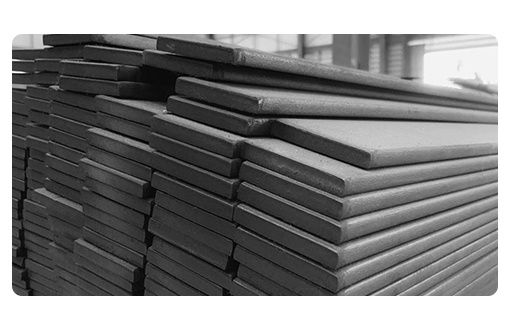

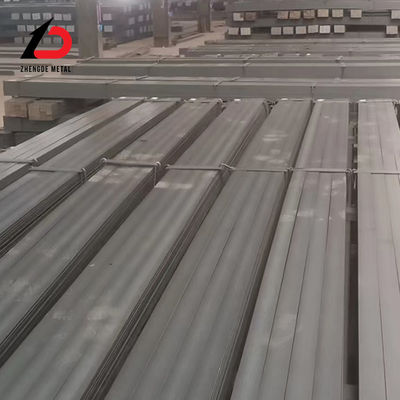

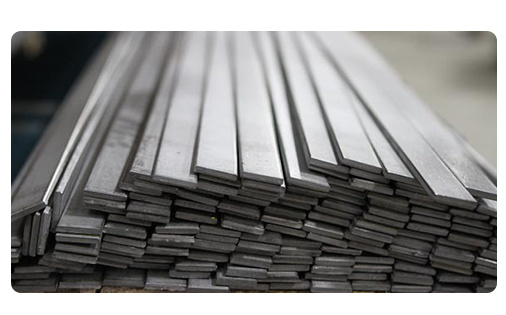

Zhengde Steel flat bar refers to steel with a width of 12-300mm, a thickness of 3-60mm, a rectangular cross-section and slightly blunt edges. Flat steel can be finished steel, and can also be used as blanks for welded pipes and thin slabs for stacked thin plates. Main application: steel flat bar can be used as a finished material to make hoop iron, tools and mechanical parts, and it can be used as a structural part of a house frame and an escalator in a building. Flat steel can be produced in a fixed thickness, fixed width, and fixed length according to user needs, which reduces cutting for users, saves processes, reduces labor and material consumption, and also reduces processing loss of raw materials, saving time, labor, and energy. material. Steel flat bar products have been used in steel structure manufacturing, machinery manufacturing, automobile industry, mining machinery, lifting machinery and other industrial materials.
| W (mm) |
Thickness(mm) | ||||||||||||||||
| 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | |
| Weight (kg/m) | |||||||||||||||||
| 12 | 0.38 | 0.47 | 0.57 | 0.66 | 0.75 | ||||||||||||
| 14 | 0.44 | 0.55 | 0.66 | 0.77 | 0.88 | ||||||||||||
| 16 | 0.5 | 0.63 | 0.75 | 0.88 | 1 | 1.15 | 1.26 | ||||||||||
| 18 | 0.57 | 0.71 | 0.85 | 0.99 | 1.13 | 1.27 | 1.41 | ||||||||||
| 20 | 0.63 | 0.79 | 0.94 | 1.1 | 1.26 | 1.41 | 1.57 | 1.73 | 1.88 | ||||||||
| 22 | 0.69 | 0.86 | 1.04 | 1.21 | 1.38 | 1.55 | 1.73 | 1.9 | 2.07 | ||||||||
| 25 | 0.79 | 0.98 | 1.18 | 1.37 | 1.57 | 1.77 | 1.96 | 2.16 | 2.36 | 2.75 | 3.14 | ||||||
| 28 | 0.88 | 1.1 | 1.32 | 1.54 | 1.76 | 1.98 | 2.2 | 2.42 | 2.64 | 3.08 | 3.53 | ||||||
| 30 | 0.94 | 1.18 | 1.41 | 1.65 | 1.88 | 2.12 | 2.36 | 2.59 | 2.83 | 3.36 | 3.77 | 4.24 | 4.71 | ||||
| 32 | 1.01 | 1.25 | 1.5 | 1.76 | 2.01 | 2.26 | 2.54 | 2.76 | 3.01 | 3.51 | 4.02 | 4.52 | 5.02 | ||||
| 36 | 1.13 | 1.41 | 1.69 | 1.97 | 2.26 | 2.51 | 2.82 | 3.11 | 3.39 | 3.95 | 4.52 | 5.09 | 5.65 | ||||
| 40 | 1.26 | 1.57 | 1.88 | 2.2 | 2.51 | 2.83 | 3.14 | 3.45 | 3.77 | 4.4 | 5.02 | 5.65 | 6.28 | 6.91 | 7.85 | 8.79 | |
| 45 | 1.41 | 1.77 | 2.12 | 2.47 | 2.83 | 3.18 | 3.53 | 3.89 | 2.24 | 4.95 | 5.65 | 6.36 | 7.07 | 7.77 | 8.83 | 9.89 | 10.6 |
| 50 | 1.57 | 1.96 | 2.36 | 2.75 | 3.14 | 3.53 | 3.93 | 4.32 | 4.71 | 5.5 | 6.28 | 7.07 | 7.85 | 8.64 | 9.81 | 10.99 | 11.78 |
| 56 | 1.76 | 2.2 | 2.64 | 3.08 | 3.52 | 3.95 | 4.39 | 4.83 | 5.27 | 6.15 | 7.3 | 7.91 | 8.79 | 9.67 | 10.99 | 12.31 | 13.19 |
| 60 | 1.88 | 2.36 | 2.83 | 3.3 | 3.77 | 4.24 | 4.71 | 5.18 | 5.65 | 6.59 | 7.54 | 8.48 | 9.42 | 10.36 | 11.78 | 13.19 | 14.13 |
| 63 | 1.98 | 2.47 | 2.97 | 3.46 | 3.95 | 4.45 | 4.94 | 5.44 | 5.93 | 6.92 | 7.91 | 8.9 | 9.69 | 10.88 | 12.36 | 13.85 | 14.34 |
| 65 | 2.04 | 2.55 | 3.06 | 3.57 | 4.08 | 4.59 | 5.1 | 5.61 | 6.12 | 7.14 | 8.16 | 9.19 | 10.21 | 11.23 | 12.76 | 14.29 | 15.31 |
| 70 | 2.2 | 2.75 | 3.3 | 3.85 | 4.4 | 4.95 | 5.5 | 6.04 | 6.59 | 7.69 | 8.79 | 8.89 | 10.99 | 12.09 | 13.74 | 15.39 | 16.49 |
| 75 | 2.36 | 2.94 | 3.53 | 4.12 | 4.71 | 5.3 | 5.89 | 6.48 | 7.07 | 8.24 | 9.42 | 10.6 | 11.78 | 12.95 | 14.72 | 16.49 | 17.66 |
| 80 | 2.51 | 3.14 | 3.77 | 4.4 | 5.02 | 5.65 | 6.28 | 6.91 | 7.54 | 8.79 | 10.05 | 11.3 | 12.56 | 13.82 | 15.7 | 17.58 | 18.84 |
| 85 | 2.67 | 3.34 | 4 | 4.67 | 5.34 | 6.01 | 6.67 | 7.34 | 8.01 | 9.34 | 10.68 | 12.01 | 13.35 | 14.68 | 16.68 | 18.68 | 20.02 |
| 90 | 2.83 | 3.53 | 4.24 | 4.95 | 5.56 | 6.36 | 7.07 | 7.77 | 8.48 | 9.89 | 11.3 | 12.72 | 14.13 | 15.54 | 17.65 | 19.78 | 21.2 |
| 95 | 2.98 | 3.73 | 4.47 | 5.22 | 5.97 | 6.71 | 7.46 | 8.2 | 8.95 | 10.44 | 11.93 | 13.42 | 14.92 | 16.41 | 18.84 | 20.88 | 22.37 |
| 100 | 3.14 | 3.93 | 4.71 | 5.5 | 6.28 | 7.07 | 7.85 | 8.64 | 9.42 | 10.99 | 12.56 | 14.13 | 15.7 | 17.27 | 19.63 | 21.98 | 23.55 |
| 105 | 3.3 | 4.12 | 4.95 | 5.77 | 6.59 | 7.42 | 8.24 | 9.07 | 9.89 | 11.54 | 13.19 | 14.84 | 16.49 | 18.18 | 20.61 | 23.08 | 24.73 |
| 110 | 3.45 | 4.32 | 5.18 | 6.04 | 6.91 | 7.77 | 8.64 | 9.5 | 10.36 | 12.09 | 13.82 | 15.54 | 17.27 | 19 | 21.59 | 24.18 | 25.91 |
| 120 | 3.77 | 4.71 | 5.65 | 6.59 | 7.54 | 8.48 | 9.42 | 10.36 | 11.3 | 13.19 | 15.07 | 16.96 | 18.84 | 20.72 | 23.55 | 26.38 | 28.26 |
| 125 | 3.93 | 4.91 | 5.89 | 6.67 | 7.85 | 8.83 | 9.81 | 10.76 | 11.78 | 13.74 | 15.7 | 17.66 | 19.63 | 21.5 | 24.53 | 27.48 | 29.44 |
| 130 | 4.08 | 5.1 | 6.12 | 7.14 | 8.16 | 9.18 | 10.21 | 11.23 | 12.25 | 14.29 | 16.33 | 18.87 | 20.41 | 22.45 | 25.51 | 28.57 | 30.62 |
| 140 | 4.4 | 5.5 | 6.59 | 7.69 | 8.79 | 9.89 | 10.99 | 12.09 | 13.19 | 15.39 | 17.58 | 19.78 | 21.98 | 24.18 | 27.48 | 30.77 | 32.97 |
| 150 | 4.71 | 5.89 | 7.07 | 8.24 | 9.42 | 10.6 | 11.78 | 12.95 | 14.13 | 16.49 | 18.84 | 21.2 | 23.55 | 25.91 | 29.44 | 32.97 | 35.33 |

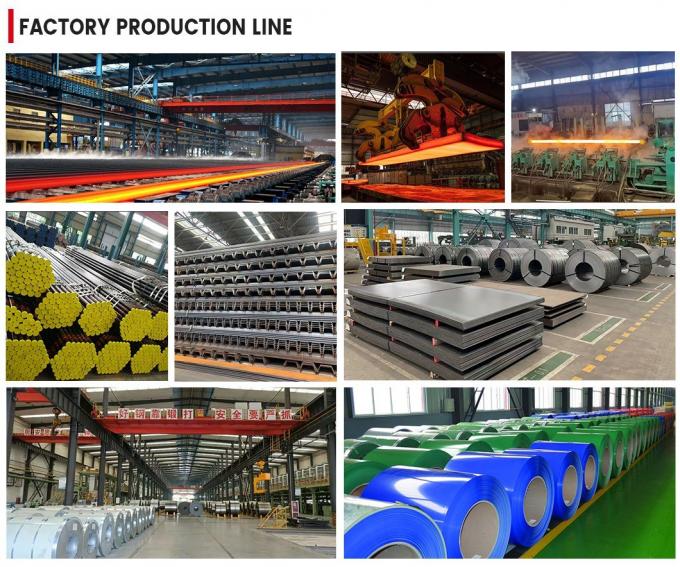

Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
