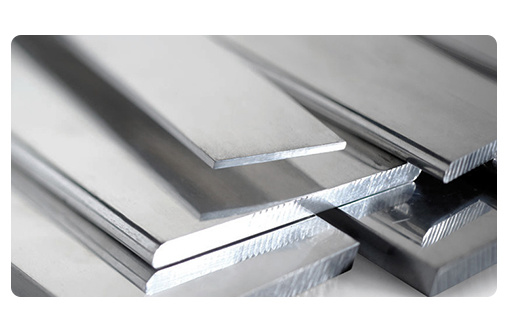

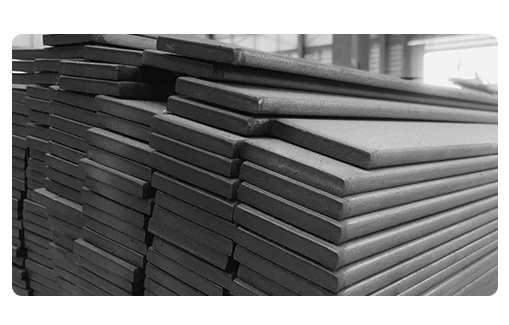

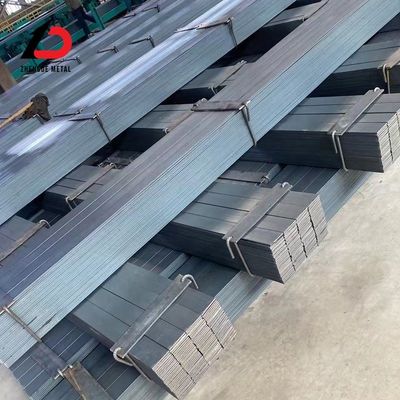

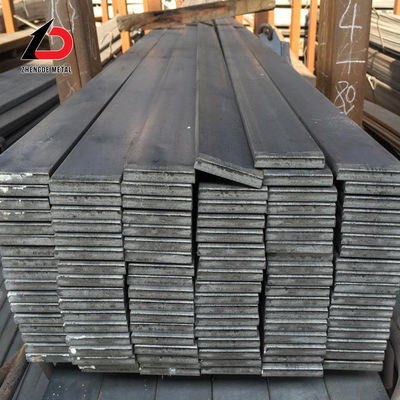

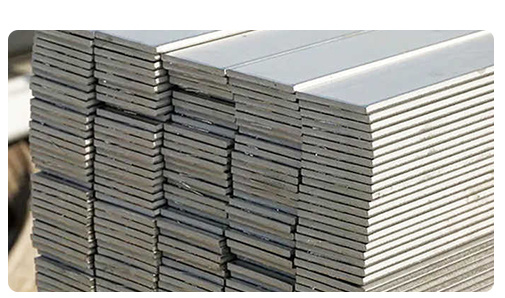

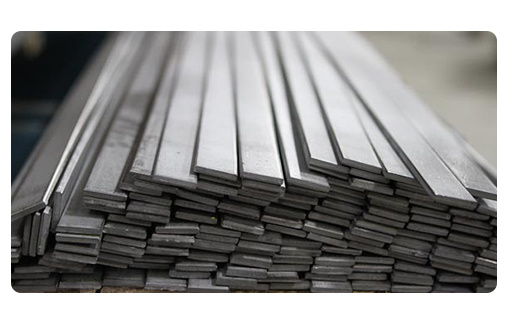

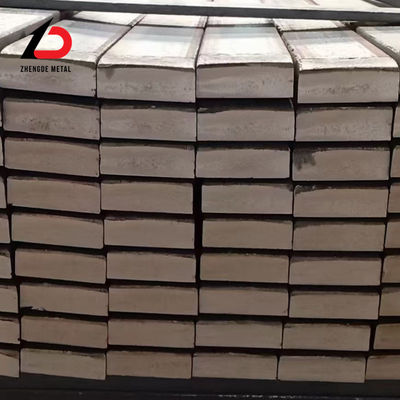

Zhengde Steel flat bar can be produced in fixed thickness, fixed width and fixed length according to user needs, which reduces cutting and saves processes for users, reduces the consumption of labor and materials, and also reduces the processing loss of raw materials, saving time, effort and money. material. Products have been professionally used in steel structure manufacturing, machinery manufacturing, automobile industry, mining machinery, hoisting machinery and other industrial materials.
| W (mm) |
Thickness(mm) | ||||||||||||||||
| 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | 28 | 30 | |
| Weight (kg/m) | |||||||||||||||||
| 12 | 0.38 | 0.47 | 0.57 | 0.66 | 0.75 | ||||||||||||
| 14 | 0.44 | 0.55 | 0.66 | 0.77 | 0.88 | ||||||||||||
| 16 | 0.5 | 0.63 | 0.75 | 0.88 | 1 | 1.15 | 1.26 | ||||||||||
| 18 | 0.57 | 0.71 | 0.85 | 0.99 | 1.13 | 1.27 | 1.41 | ||||||||||
| 20 | 0.63 | 0.79 | 0.94 | 1.1 | 1.26 | 1.41 | 1.57 | 1.73 | 1.88 | ||||||||
| 22 | 0.69 | 0.86 | 1.04 | 1.21 | 1.38 | 1.55 | 1.73 | 1.9 | 2.07 | ||||||||
| 25 | 0.79 | 0.98 | 1.18 | 1.37 | 1.57 | 1.77 | 1.96 | 2.16 | 2.36 | 2.75 | 3.14 | ||||||
| 28 | 0.88 | 1.1 | 1.32 | 1.54 | 1.76 | 1.98 | 2.2 | 2.42 | 2.64 | 3.08 | 3.53 | ||||||
| 30 | 0.94 | 1.18 | 1.41 | 1.65 | 1.88 | 2.12 | 2.36 | 2.59 | 2.83 | 3.36 | 3.77 | 4.24 | 4.71 | ||||
| 32 | 1.01 | 1.25 | 1.5 | 1.76 | 2.01 | 2.26 | 2.54 | 2.76 | 3.01 | 3.51 | 4.02 | 4.52 | 5.02 | ||||
| 36 | 1.13 | 1.41 | 1.69 | 1.97 | 2.26 | 2.51 | 2.82 | 3.11 | 3.39 | 3.95 | 4.52 | 5.09 | 5.65 | ||||
| 40 | 1.26 | 1.57 | 1.88 | 2.2 | 2.51 | 2.83 | 3.14 | 3.45 | 3.77 | 4.4 | 5.02 | 5.65 | 6.28 | 6.91 | 7.85 | 8.79 | |
| 45 | 1.41 | 1.77 | 2.12 | 2.47 | 2.83 | 3.18 | 3.53 | 3.89 | 2.24 | 4.95 | 5.65 | 6.36 | 7.07 | 7.77 | 8.83 | 9.89 | 10.6 |
| 50 | 1.57 | 1.96 | 2.36 | 2.75 | 3.14 | 3.53 | 3.93 | 4.32 | 4.71 | 5.5 | 6.28 | 7.07 | 7.85 | 8.64 | 9.81 | 10.99 | 11.78 |
| 56 | 1.76 | 2.2 | 2.64 | 3.08 | 3.52 | 3.95 | 4.39 | 4.83 | 5.27 | 6.15 | 7.3 | 7.91 | 8.79 | 9.67 | 10.99 | 12.31 | 13.19 |
| 60 | 1.88 | 2.36 | 2.83 | 3.3 | 3.77 | 4.24 | 4.71 | 5.18 | 5.65 | 6.59 | 7.54 | 8.48 | 9.42 | 10.36 | 11.78 | 13.19 | 14.13 |
| 63 | 1.98 | 2.47 | 2.97 | 3.46 | 3.95 | 4.45 | 4.94 | 5.44 | 5.93 | 6.92 | 7.91 | 8.9 | 9.69 | 10.88 | 12.36 | 13.85 | 14.34 |
| 65 | 2.04 | 2.55 | 3.06 | 3.57 | 4.08 | 4.59 | 5.1 | 5.61 | 6.12 | 7.14 | 8.16 | 9.19 | 10.21 | 11.23 | 12.76 | 14.29 | 15.31 |
| 70 | 2.2 | 2.75 | 3.3 | 3.85 | 4.4 | 4.95 | 5.5 | 6.04 | 6.59 | 7.69 | 8.79 | 8.89 | 10.99 | 12.09 | 13.74 | 15.39 | 16.49 |
| 75 | 2.36 | 2.94 | 3.53 | 4.12 | 4.71 | 5.3 | 5.89 | 6.48 | 7.07 | 8.24 | 9.42 | 10.6 | 11.78 | 12.95 | 14.72 | 16.49 | 17.66 |
| 80 | 2.51 | 3.14 | 3.77 | 4.4 | 5.02 | 5.65 | 6.28 | 6.91 | 7.54 | 8.79 | 10.05 | 11.3 | 12.56 | 13.82 | 15.7 | 17.58 | 18.84 |
| 85 | 2.67 | 3.34 | 4 | 4.67 | 5.34 | 6.01 | 6.67 | 7.34 | 8.01 | 9.34 | 10.68 | 12.01 | 13.35 | 14.68 | 16.68 | 18.68 | 20.02 |
| 90 | 2.83 | 3.53 | 4.24 | 4.95 | 5.56 | 6.36 | 7.07 | 7.77 | 8.48 | 9.89 | 11.3 | 12.72 | 14.13 | 15.54 | 17.65 | 19.78 | 21.2 |
| 95 | 2.98 | 3.73 | 4.47 | 5.22 | 5.97 | 6.71 | 7.46 | 8.2 | 8.95 | 10.44 | 11.93 | 13.42 | 14.92 | 16.41 | 18.84 | 20.88 | 22.37 |
| 100 | 3.14 | 3.93 | 4.71 | 5.5 | 6.28 | 7.07 | 7.85 | 8.64 | 9.42 | 10.99 | 12.56 | 14.13 | 15.7 | 17.27 | 19.63 | 21.98 | 23.55 |
| 105 | 3.3 | 4.12 | 4.95 | 5.77 | 6.59 | 7.42 | 8.24 | 9.07 | 9.89 | 11.54 | 13.19 | 14.84 | 16.49 | 18.18 | 20.61 | 23.08 | 24.73 |
| 110 | 3.45 | 4.32 | 5.18 | 6.04 | 6.91 | 7.77 | 8.64 | 9.5 | 10.36 | 12.09 | 13.82 | 15.54 | 17.27 | 19 | 21.59 | 24.18 | 25.91 |
| 120 | 3.77 | 4.71 | 5.65 | 6.59 | 7.54 | 8.48 | 9.42 | 10.36 | 11.3 | 13.19 | 15.07 | 16.96 | 18.84 | 20.72 | 23.55 | 26.38 | 28.26 |
| 125 | 3.93 | 4.91 | 5.89 | 6.67 | 7.85 | 8.83 | 9.81 | 10.76 | 11.78 | 13.74 | 15.7 | 17.66 | 19.63 | 21.5 | 24.53 | 27.48 | 29.44 |
| 130 | 4.08 | 5.1 | 6.12 | 7.14 | 8.16 | 9.18 | 10.21 | 11.23 | 12.25 | 14.29 | 16.33 | 18.87 | 20.41 | 22.45 | 25.51 | 28.57 | 30.62 |
| 140 | 4.4 | 5.5 | 6.59 | 7.69 | 8.79 | 9.89 | 10.99 | 12.09 | 13.19 | 15.39 | 17.58 | 19.78 | 21.98 | 24.18 | 27.48 | 30.77 | 32.97 |
| 150 | 4.71 | 5.89 | 7.07 | 8.24 | 9.42 | 10.6 | 11.78 | 12.95 | 14.13 | 16.49 | 18.84 | 21.2 | 23.55 | 25.91 | 29.44 | 32.97 | 35.33 |

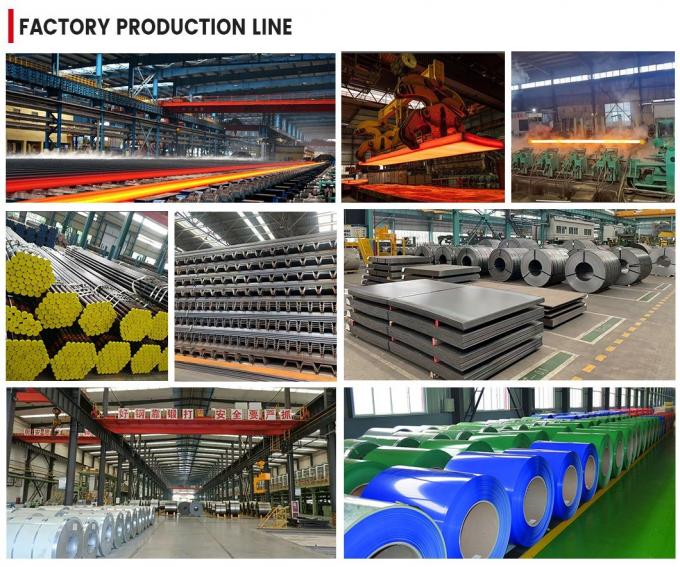

Shandong Zhengde Metal Manufacturing Co., Ltd. is a production and sales company integrating hot-rolled steel coils, cold-rolled steel coils, galvanized steel coils, color-coated steel coils, section steel, steel pipes, steel wires, metal mesh, stainless steel, aluminum, copper and other metal products integrated large enterprises. Five production and sales bases have been formed in Binzhou, Liaocheng, Wuxi, Tianjin, Jinan and Tai'an, with more than 100 production lines, 4 nationally recognized laboratories, 2 technical engineering centers, and 5 enterprise technology centers. Products are exported to more than 50 countries and regions such as North America, South America, Europe, Africa, Oceania, Middle East, and Southeast Asia.
